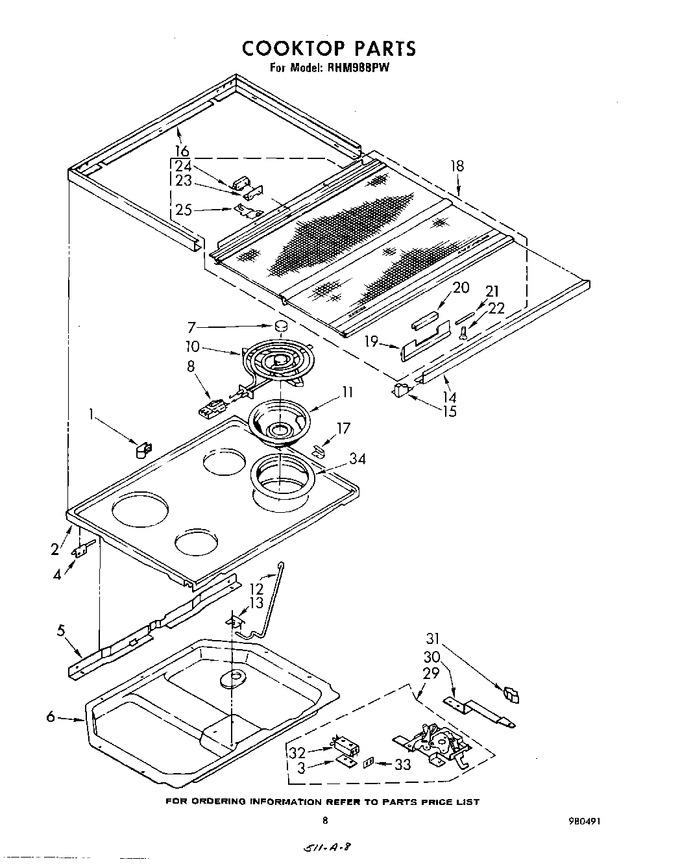

05 - Cooktop


06 - Upper Chassis And Components


07 - Light, Hinge And Stirrer


08 - Control


09 - Magnetron And Air Flow


10 - Microwave Door And Latch , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11693756		Screw, 8a X 5/8   (Replaces: 258665)			Immediately	$ 12.65
1	WP308605		Clamp, Cable   (Replaces: 308605)				$ 10.08
2	338177		Cooktop (clip, ``j`` (2))		Appelez-nous	-
2	308427		Cooktop (white)		Appelez-nous	-
2	308424		Cooktop (golden Harvest)		Appelez-nous	-
2	309013		Cooktop (almond)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	328238		Hinge, Leaf Cooktop L.h.		Appelez-nous	-
4	WP308685		Screw (4)   (Replaces: 98518)			Immediately	$ 7.08
4	328239		Hinge, Leaf Cooktop R.h.		Appelez-nous	-
5	308968		Shield, Wiring		Appelez-nous	-
5	308581		Screw, 10 X .5 Hex Head		Appelez-nous	-
6	308827		Burner Box		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
6	308581		Screw, 10 X .5hh (2)		Appelez-nous	-
7	256904		Medallion		Appelez-nous	-
8	330031		Receptacle   (Replaces: 258858)			Immediately	$ 14.48
8	WP486754		Screw, 6-32 X 1/4 (4)   (Replaces: 246119)				$ 6.75
10	WPY04100165		Unit, Surface (6`` (2))   (Replaces: 306666)			Immediately	$ 50.62
10	WP660533		Unit, Surface (8`` (2))   (Replaces: 256704)			Immediately	$ 39.47
11	W10291024		Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
11	W10291024		Pan (6`` (2))   (Replaces: 306789)			Immediately	$ 49.90
12	307968		Rod, Cooktop		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
13	307967		Retainer, Cooktop		Appelez-nous	-
14	308620		Trim, Front		Appelez-nous	-
15	98084		Clip (4)		Appelez-nous	-
15	308445		End Cap R.h.		Appelez-nous	-
15	308444		End Cap L.h.		Appelez-nous	-
15	309051		Screw, 8a X 3/8 (2)		Appelez-nous	-
16	W11693756		Screw, 8a X 5/8 (4)   (Replaces: 258665)			Immediately	$ 12.65
16	308619		Trim, Side & Rear		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
17	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
17	308621		Bracket, Cooktop (6)		Appelez-nous	-
18	328409		Glass Top Assembly		Appelez-nous	-
19	309569		Handle		Appelez-nous	-
20	309566		Retainer, Handle		Appelez-nous	-
21	309565		Pin, Retainer (2)				$ 8.75
22	309568		Screw, 4b X 1/4 (2)		Appelez-nous	-
23	309468		Pivot Angle		Appelez-nous	-
24	98106		Screw, 6-32 X 7/8 (2)		Appelez-nous	-
24	308983		Switch		Appelez-nous	-
25	328256		Switch, Actuator		Appelez-nous	-
29	328585		Latch Assembly		Appelez-nous	-
29	310001		Screw		Appelez-nous	-
29	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
30	308422		Screw, 10-24 X 1/2		Appelez-nous	-
30	308413		Handle, Latch		Appelez-nous	-
31	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
31	307977		Knob, Latch		Appelez-nous	-
32	98106		Screw (2)		Appelez-nous	-
32	308185		Switch, Limit		Appelez-nous	-
33	310100		Shield, Terminal		Appelez-nous	-
34	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
34	W10854470		Ring, Adapter (6`` (2))   (Replaces: 306785)				$ 81.37
