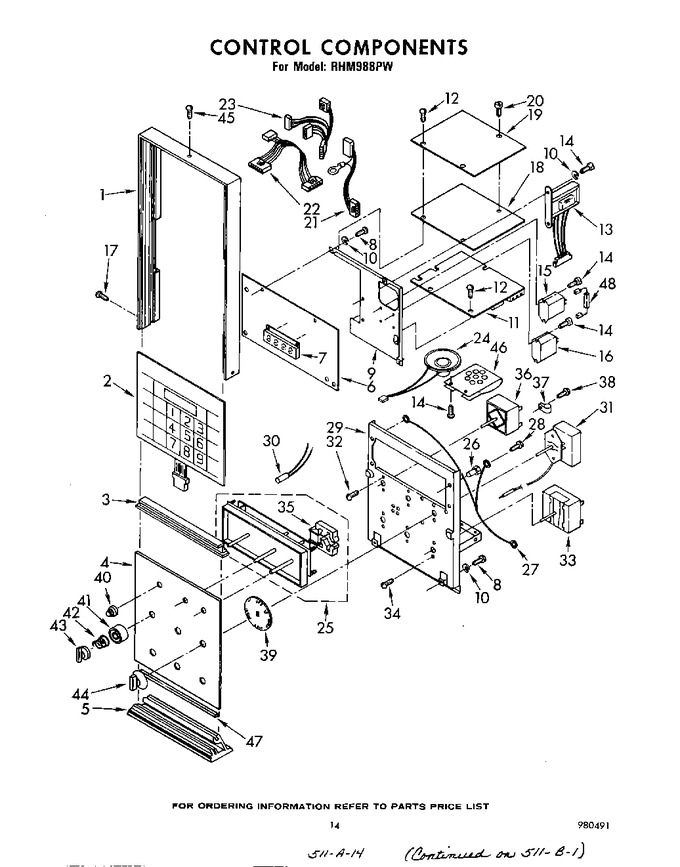

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309608		Frame, Control Panel		Appelez-nous	-
2	309766		Switch, Touch		Appelez-nous	-
3	309490		Splice, Panel		Appelez-nous	-
4	309650		Panel, Glass		Appelez-nous	-
5	309609		Cap, Control Panel (bottom)		Appelez-nous	-
6	60744		Display Assembly		Appelez-nous	-
7	60320		Clock, Led		Appelez-nous	-
8	WP486754		Screw, 6-32 X 1/4 (3)   (Replaces: 246119)				$ 6.75
9	309485		Bracket, P.c. Board		Appelez-nous	-
10	138473		Lockwasher		Appelez-nous	-
11	60762		Power Supply Assembly		Appelez-nous	-
12	309080		Screw 8-32 X 3/8		Appelez-nous	-
13	TB1056		Transformer & Harness Assembly   (Replaces: 60355)		Appelez-nous	-
14	309258		Screw, 6 X 3/8b (4)		Appelez-nous	-
15	308560		Relay, Control (12v)		Appelez-nous	-
16	308561		Relay, Latch (120v)		Appelez-nous	-
17	348689		Screw, No. 8 (2)				$ 66.92
18	60747		Microcomputer Assembly		Appelez-nous	-
19	328430		Protector Assembly		Appelez-nous	-
20	309433		Spacer		Appelez-nous	-
21	328160		Harness, Power Supply		Appelez-nous	-
22	328161		Harness, Touch Panel		Appelez-nous	-
23	328162		Harness, Display		Appelez-nous	-
24	328159		Speaker & Harness Assembly		Appelez-nous	-
25	309434		Timer		Appelez-nous	-
26	309645		Nut, Extension		Appelez-nous	-
27	309841		Cable, Support		Appelez-nous	-
28	166681		Screw, 10-32 X 5/16		Appelez-nous	-
29	328137		Bracket, Control Mounting		Appelez-nous	-
30	309562		Light, Indicator 250v (7)		Appelez-nous	-
31	309286		Thermostat, Lower Oven		Appelez-nous	-
32	487384		Screw, 6-32 X 1/4		Appelez-nous	-
33	308262		Switch, Selector		Appelez-nous	-
34	308119		Screw, 8-32 X 3/16		Appelez-nous	-
35	308443		Motor, Timer		Appelez-nous	-
36	308475		Switch, Surface Unit (4)		Appelez-nous	-
36	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
37	488946		Strain Relief (no.9)   (Replaces: 308606)				$ 18.41
37	WP308605		Strain Relief (no.7)   (Replaces: 308604)				$ 10.08
37	WP308605		Strain Relief (no.8)   (Replaces: 308605)				$ 10.08
38	W11693756		Screw, 8a X 5/8   (Replaces: 258665)			Immediately	$ 12.65
39	309489		Dial, Surface Units (4)		Appelez-nous	-
40	309553		Knob, Timer (3)		Appelez-nous	-
41	309556		Bezel, Knob (4)		Appelez-nous	-
42	308348		Spring, Bezel		Appelez-nous	-
43	308346		Knob, Surface Units (4)		Appelez-nous	-
44	WP330190		Knob, Control (2)   (Replaces: 328135)				$ 38.10
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	308745		Bracket, Speaker		Appelez-nous	-
46	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
47	308297		Seal, Foam		Appelez-nous	-
48	328678		Resistor, Surge (3-ohm)		Appelez-nous	-
