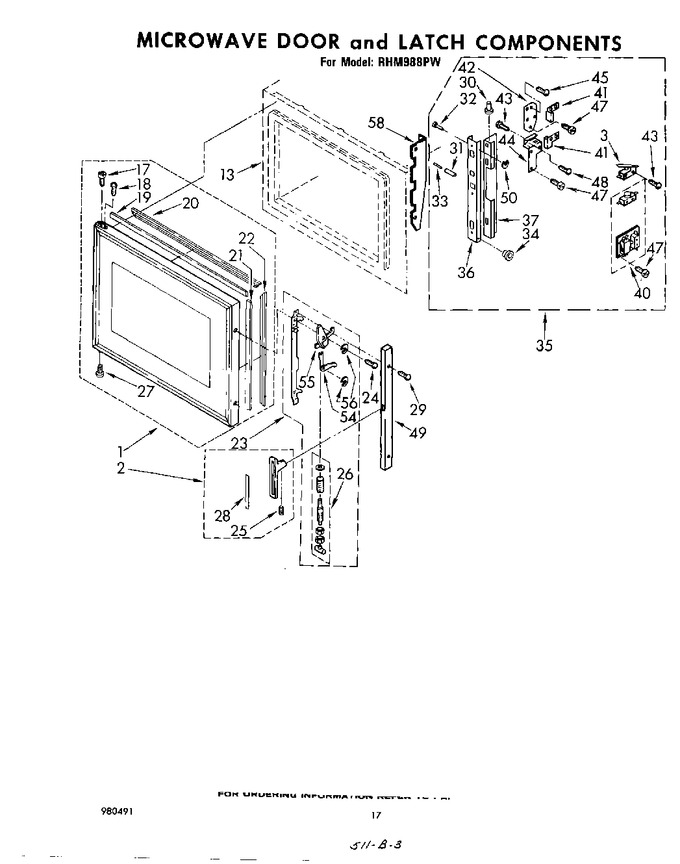

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 832770 | Door, Assembly |
|
- | |||||
| 2 | 328432 | Handle, Door |
|
- | |||||
| 3 | 308416 | Switch, Secondary |
|
- | |||||
| 13 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 17 | 307536 | Screw, 8d X .312 |
|
- | |||||
| 18 | 307537 | Xscrew, 8-32 X .312 (6) |
|
- | |||||
| 19 | 307544 | Seal, Top & Bottom (2) |
|
- | |||||
| 20 | 307545 | Retainer, Top & Bottom Seal (2) |
|
- | |||||
| 21 | 307543 | Seal, Side (2) |
|
- | |||||
| 22 | 307546 | Retainer, Side Seal (2) |
|
- | |||||
| 23 | 328012 | Latch, Door |
|
- | |||||
| 24 | 309080 | Screw, 8-32 X 3/8 (2) |
|
- | |||||
| 25 | 307577 | Setscrew, 8-32 |
|
- | |||||
| 26 | 261853 | Plunger, Latch |
|
- | |||||
| 27 | 308785 | Pin, Hinge |
|
- | |||||
| 28 | 309564 | Insert |
|
- | |||||
| 29 | 310210 | Screw, 8-32 X .281 (2) |
|
- | |||||
| 30 | 307578 | Bumper |
|
- | |||||
| 31 | 307604 | Roller, Latch |
|
- | |||||
| 32 | 307603 | Pin, Roller (2) |
|
- | |||||
| 33 | 307612 | Pin, Straight |
|
- | |||||
| 34 | 258666 | Spacer (4) |
|
- | |||||
| 35 | 328701 | Interlock Assembly |
|
- | |||||
| 40 | 261893 | Switch Kit, Door (kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3 |
|
- | |||||
| 41 | 307611 | Insulator, Switch (top) |
|
- | |||||
| 42 | 307586 | Plate, Top Switch Mounting |
|
- | |||||
| 43 | 98106 | Screw, 6-32 X 7/8 (4) |
|
- | |||||
| 44 | 310148 | Bracket, Switch |
|
- | |||||
| 45 | 309080 | Screw, 8-32 X 3/8 (3) |
|
- | |||||
| 47 | 310629 | Xscrew, 8-32 X 5/8 |
|
- | |||||
| 48 | 246135 | Screw, 8d X 5/16 |
|
- | |||||
| 49 | 307584 | End Cap, Door |
|
- | |||||
| 50 | 307605 | Ring, Retaining (2) |
|
- | |||||
| 54 | 307596 | Latch, Concealed |
|
- | |||||
| 55 | 307556 | Handle, Cam |
|
- | |||||
| 56 | 308187 | Ring, ``e`` (2) |
|
- | |||||
| 58 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 58 | 309963 | Shield, Light |
|
- | |||||
| 58 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 58 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 58 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 58 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 58 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 58 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 58 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 58 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 58 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 58 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 58 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 58 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 58 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 58 | WP261869 | Citrine White (microwave) (Replaces: 261869) |
|
$ 23.85 | |||||
| 58 | 261748 | Touch-up, Oven (continuous Clean) |
|
- | |||||
| 58 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 58 | 206925 | Leveler, Enamel |
|
- | |||||
| 58 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 58 | 261890 | Golden Harvest |
|
- | |||||
| 58 | 285006 | Enamel, Black (Replaces: 799339) |
|
Immediately | $ 51.34 | ||||
| 58 | 350930 | White (Replaces: 799343) |
|
Immediately | $ 34.39 | ||||
| 58 | 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | |||||
| 58 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 58 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 58 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 58 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 58 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 58 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 58 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 58 | 261582 | Grease |
|
- | |||||
| 58 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 58 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 58 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 44.41 | |||||
| 58 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 58 | 261881 | Rotisserie Kit Model Rck79 Vent Hood Model Reh6330 |
|
- | |||||
| 58 | 310220 | Tech Sheet (service Information) |
|
- | |||||
| 58 | 310053 | Installation Instructions |
|
- | |||||
| 58 | 309295 | Use & Care Guide |
|
- | |||||
| 58 | 308500 | Book, Cooking Guide |
|
- | |||||
| 58 | 309888 | Cookbook (microwave) |
|
- | |||||
| 58 | 980491 | List, Repair Parts |
|
- | |||||
| 978883 | Almond |
|
- | ||||||
| 261891 | Xgolden Harvest |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- |
