SELECT A DIAGRAM

Diagram for 02 - Oven
02 - Oven

Diagram for 03 - Cabinet And Air Flow
03 - Cabinet And Air Flow

Diagram for 04 - Control Panel
04 - Control Panel

Diagram for 05 - Magnetron And Airflow
05 - Magnetron And Airflow

Diagram for 06 - Cabinet And Stirrer
06 - Cabinet And Stirrer

Diagram for 07 - Door And Latch
07 - Door And Latch

Diagram for 08 - Cabinet And Hinge
08 - Cabinet And Hinge

Diagram for 09 - Oven Door
09 - Oven Door

Diagram for 10 - Wiring Harness , Literature And Optional
10 - Wiring Harness , Literature And Optional


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 329071 Hinge Assembly (bottom) Appelez-nous -
2 329070 Hinge Assembly (top) Appelez-nous -
4 312147 Washer, Flat Appelez-nous -
5 312744 Hinge, Shim Locking (2) Appelez-nous -
7 312741 Plate, Nut (2) Appelez-nous -
8 312742 Screw, 12-24 X 3/4 (2) Appelez-nous -
10 311058 Shelf, Microwave (alternate) Appelez-nous -
10 309145 Shelf, Microwave (alternate) Appelez-nous -
10 312579 Shelf, Microwave (alternate (install W/silastic No. 482338)) Appelez-nous -
19 307519 Socket, Snap-in Appelez-nous -
20 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

21 312713 Screw, 8-32 X 3/8 Appelez-nous -
21 309554 Shield, Lamp Appelez-nous -
30 311286 Support, Shelf Appelez-nous -
32 311318 Shelf, Convenience Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

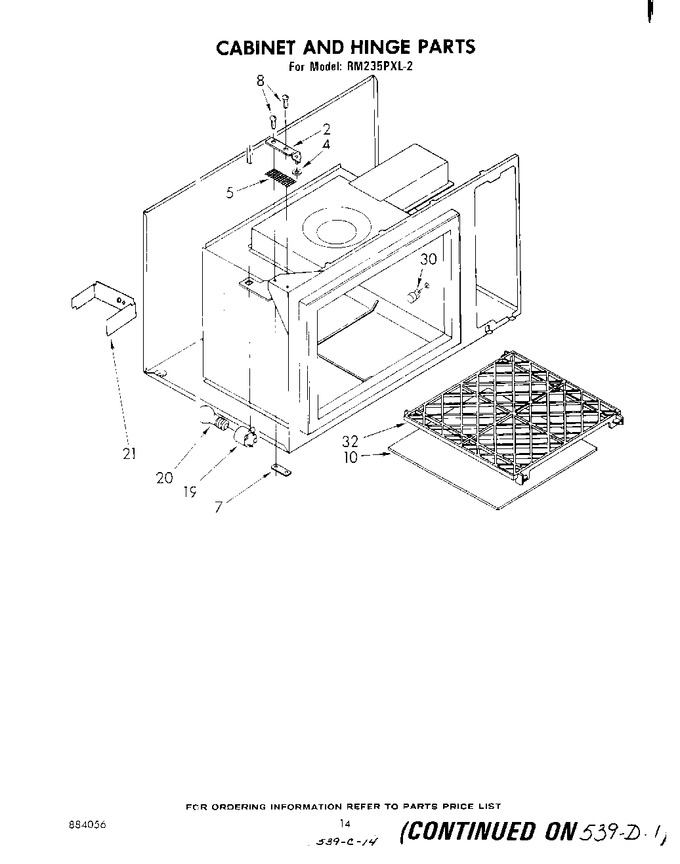

Diagram for RM235PXL2
