Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 329685 Liner, Door Appelez-nous -
1 WP308685 Screw, 10a X 1\2 (3)   (Replaces: 253549) In-Stock Immediately $ 7.08

1 311056 Screw, (4) Appelez-nous -
2 258711 Seal, Pano Glass Appelez-nous -
3 258988 Glass, Inner 30`` Appelez-nous -
4 307924 Baffle, Insulation Appelez-nous -
5 307748 Screw, 10a X 1\2 Black (4) Appelez-nous -
5 258990 Spacer, Insulation Baffle (4) Appelez-nous -
7 312783 Channel, Rubber (4) Appelez-nous -
8 310427 Frame, Door 30`` Appelez-nous -
9 309069 Glass, Outer Appelez-nous -
10 310705 Hold Down, Glass (2) Appelez-nous -
11 307748 Screw, 10a X 1/2 Black (2) Appelez-nous -
11 310428 Top, Door Frame Appelez-nous -
12 WP90296 Fastener Pushnut (2)   (Replaces: 90296) Special Order $ 7.07

13 308293 Seal, Foam (2) Appelez-nous -
14 310706 Clip, Glass (10) Appelez-nous -
15 311506 Clip (2) Appelez-nous -
17 312721 Handle, Oven Door Appelez-nous -
17 WP912618 Screw, Handle (2)   (Replaces: 308541) Special Order $ 6.98

20 312223 Pin, Wedge (2) Appelez-nous -
21 311896 Pushnut (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

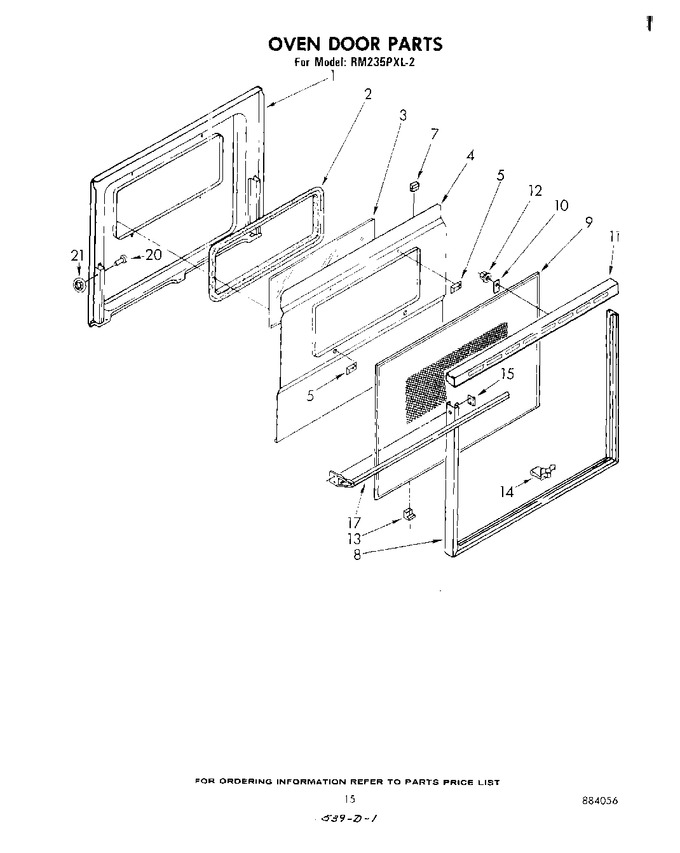

Diagram for RM235PXL2
