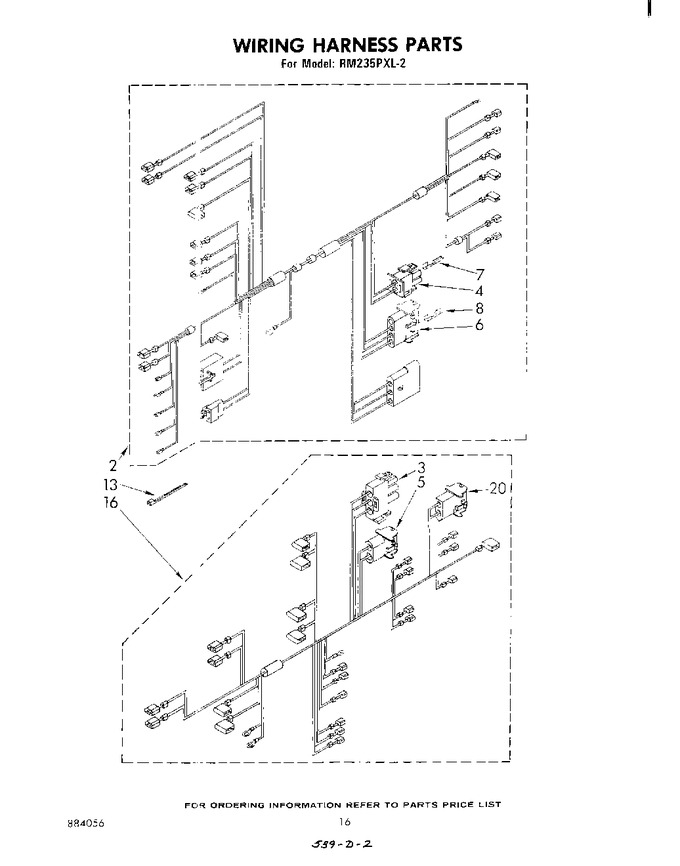

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 312434 | Harness, Wiring Control |
|
- | |||||
| 3 | 310958 | Plug, Circuit (4 Terminal) |
|
- | |||||
| 4 | 310957 | Plug, Circuit (2 Terminal) |
|
- | |||||
| 5 | 310959 | Cap, Circuit (2 Terminal) |
|
- | |||||
| 6 | 310960 | Cap, Circuit (4 Terminal) |
|
- | |||||
| 7 | 310222 | Pin, Male |
|
- | |||||
| 8 | 310223 | Pin, Female |
|
- | |||||
| 13 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.11 | |||||
| 16 | 312391 | Harness, Interlock |
|
- | |||||
| 20 | 884056 | List, Repair Parts |
|
- | |||||
| 20 | 717252 | Disconnect Block |
|
- | |||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | 261881 | Rotisserie Kit |
|
- | |||||
| 20 | 307677 | Browning Tray (micro) |
|
- | |||||
| 20 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 20 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 20 | 261582 | Grease |
|
- | |||||
| 20 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 20 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 20 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 44.41 | |||||
| 20 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 20 | 312756 | Tech Sheet |
|
- | |||||
| 20 | 311436 | Installation Instructions |
|
- | |||||
| 20 | 312410 | Use & Care Guide |
|
- | |||||
| 20 | 308500 | Book, Cooking Guide |
|
- | |||||
| 20 | 309600 | Booklet, Probe |
|
- | |||||
| 20 | 310847 | Cookbook |
|
- | |||||
| 20 | 310929 | Bi-level Cooking Guide |
|
- | |||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- |
