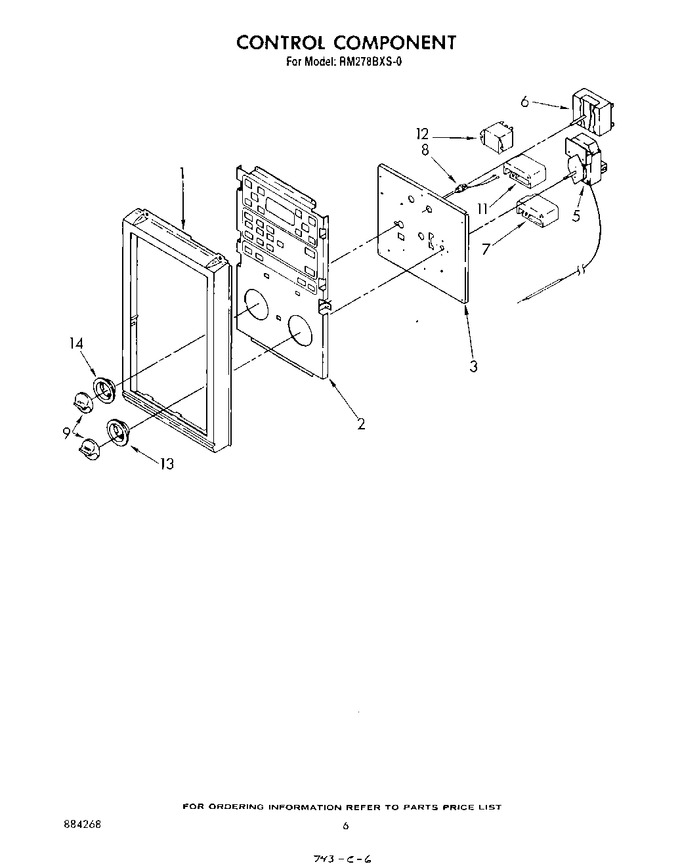

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148090		Frame, Control Panel		Appelez-nous	-
2	3147944		Module, Control (alt.)		Appelez-nous	-
2	3148273		Module, Control (alt.)		Appelez-nous	-
2	00707104		Module, Control   (Replaces: 661196)				$ 364.94
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	313533		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	3147235		Switch, Selector		Appelez-nous	-
7	314215		Screw, No.6		Appelez-nous	-
7	314211		Switch, Bake (4)		Appelez-nous	-
8	3147517		Light, Indicator (4)		Appelez-nous	-
9	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
11	314215		Screw, No.6		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
12	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
13	254225		Screw, 8bt X 1/4		Appelez-nous	-
13	311073		Escutcheon, Thermostat		Appelez-nous	-
14	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 49.73
14	254225		Screw, 8bt X 1/4		Appelez-nous	-
	313818		Screw, 8-32 X 3/16 (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
