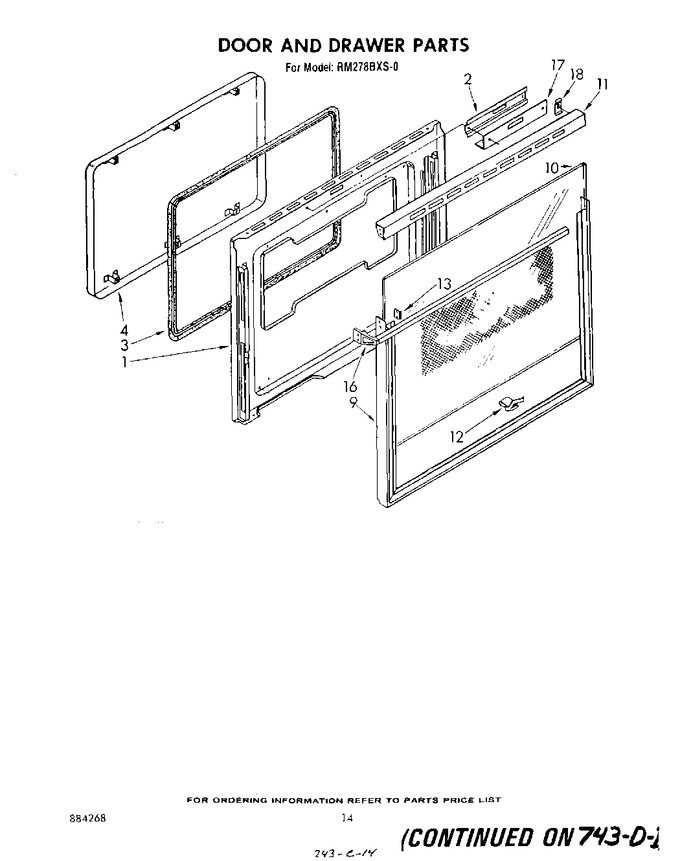

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw (2)		Appelez-nous	-
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	328546		Panel, Inner		Appelez-nous	-
9	310427		Frame, Door		Appelez-nous	-
10	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
11	310784		Top, Door Frame		Appelez-nous	-
12	310706		Clip, Glass (10)		Appelez-nous	-
13	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
13	314235		Clip (2)		Appelez-nous	-
16	312722		Handle, Oven Door				$ 118.10
16	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
17	310056		Shield, Insulation		Appelez-nous	-
17	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	310705		Clip (2)		Appelez-nous	-
