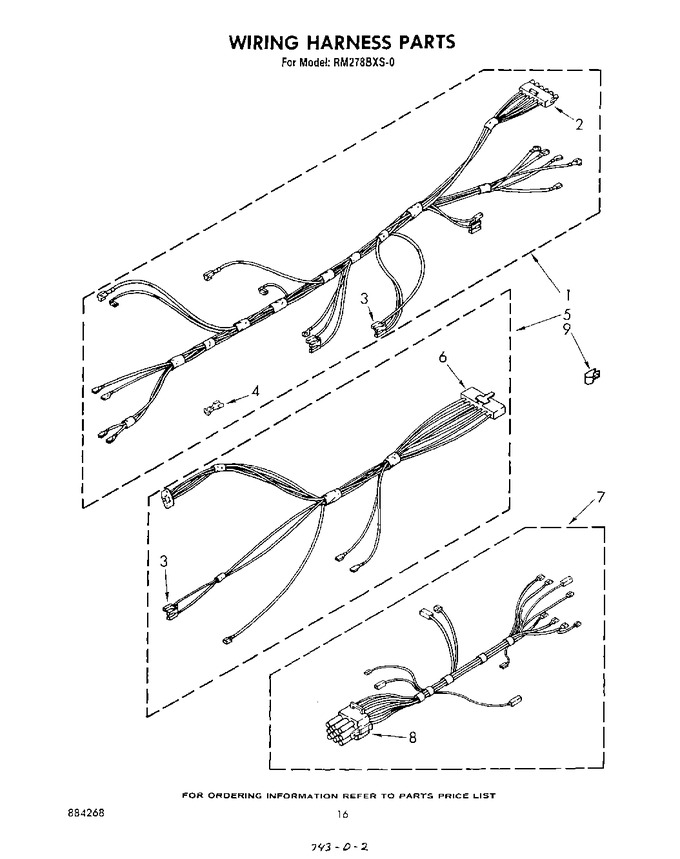

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3147554 | Harness, Wiring (main) |
|
- | |||||
| 1 | 246135 | Screw, 8d X 5/16 |
|
- | |||||
| 2 | 311575 | Connector, Housing |
|
- | |||||
| 3 | 310241 | Housing |
|
- | |||||
| 4 | WP248562 | Terminal (Replaces: 248562) |
|
$ 6.95 | |||||
| 5 | 3147560 | Harness, Wiring (control) |
|
- | |||||
| 6 | 308565 | Connector, Housing |
|
- | |||||
| 7 | 3147296 | Harness, Wiring (thermostat/ Selector) |
|
- | |||||
| 8 | 309406 | Block, Disconnect (male) |
|
- | |||||
| 9 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 9 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 9 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 9 | WP261869 | Citrine White (microwave) (Replaces: 261869) |
|
$ 23.85 | |||||
| 9 | 254323 | Touch-up, Oven |
|
- | |||||
| 9 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 9 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 9 | 206925 | Leveler, Enamel |
|
- | |||||
| 9 | 261890 | Harvest Gold |
|
- | |||||
| 9 | 285006 | Enamel, Black (Replaces: 799339) |
|
Immediately | $ 51.34 | ||||
| 9 | 350930 | White (Replaces: 799343) |
|
Immediately | $ 34.39 | ||||
| 9 | 261900 | Citrine White (5 Oz.) |
|
$ 51.34 | |||||
| 9 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 9 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 9 | 261891 | Harvest Gold |
|
- | |||||
| 9 | 978883 | Almond |
|
- | |||||
| 9 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 9 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 9 | 261582 | Grease |
|
- | |||||
| 9 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 9 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 9 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 44.41 | |||||
| 9 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 9 | 261881 | Rotisserie Kit (rck 79) |
|
- | |||||
| 9 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 9 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 9 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 9 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 9 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 9 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 9 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 9 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 9 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 9 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 9 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 9 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 9 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 9 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 9 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 9 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 9 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| LIT3147287 | Installation Instructions |
|
- | ||||||
| LIT3147965 | Tech Sheet |
|
- | ||||||
| LIT884268 | List, Repair Parts |
|
- | ||||||
| LIT313358 | Book, Cooking Guide |
|
- | ||||||
| LIT311895 | Cookbook (microwave) |
|
- | ||||||
| LIT312890 | Guide, Use & Care (microwave) |
|
- | ||||||
| LIT312894 | Use & Care Guide |
|
- |
