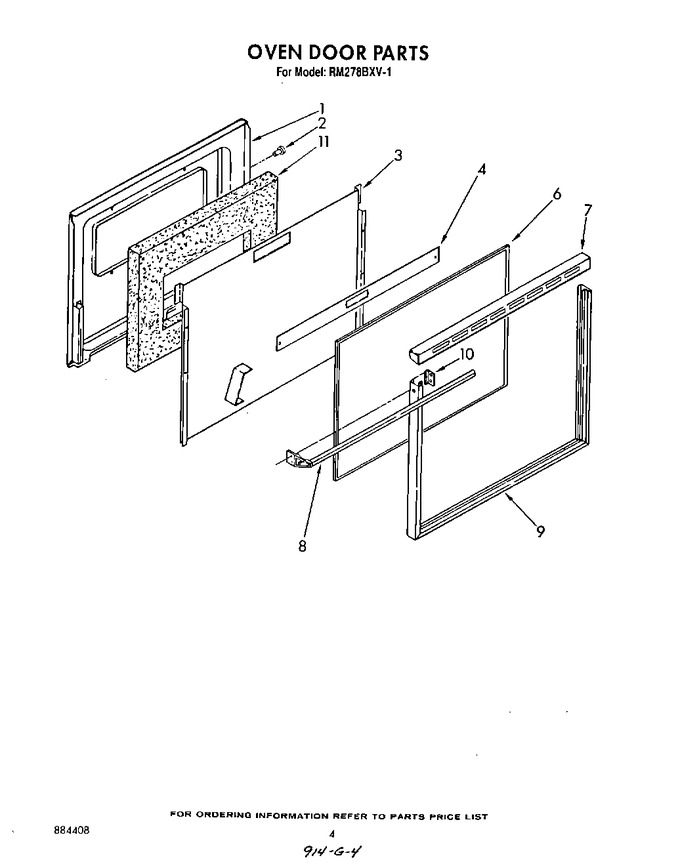

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3170707 | Liner, Door |
|
- | |||||
| 2 | 3148182 | Bumper, Door (4) |
|
- | |||||
| 3 | 3148160 | Retainer, Insulation |
|
- | |||||
| 3 | 3148443 | Screw (4) |
|
- | |||||
| 4 | 3148680 | Shield, Door |
|
- | |||||
| 4 | 254225 | Screw (2) |
|
- | |||||
| 6 | 3148186 | Panel, Door |
|
- | |||||
| 7 | 3148223 | Top, Door |
|
- | |||||
| 8 | 3148228 | Handle, Door |
|
- | |||||
| 9 | 3148235 | Frame, Door |
|
- | |||||
| 9 | WP355515 | Screw (4) (Replaces: 355515) |
|
$ 6.90 | |||||
| 10 | 3148282 | Clip, Handle |
|
$ 8.69 | |||||
| 10 | 3149333 | Screw (2) |
|
$ 5.33 | |||||
| 11 | 3147951 | Insulation |
|
- |
