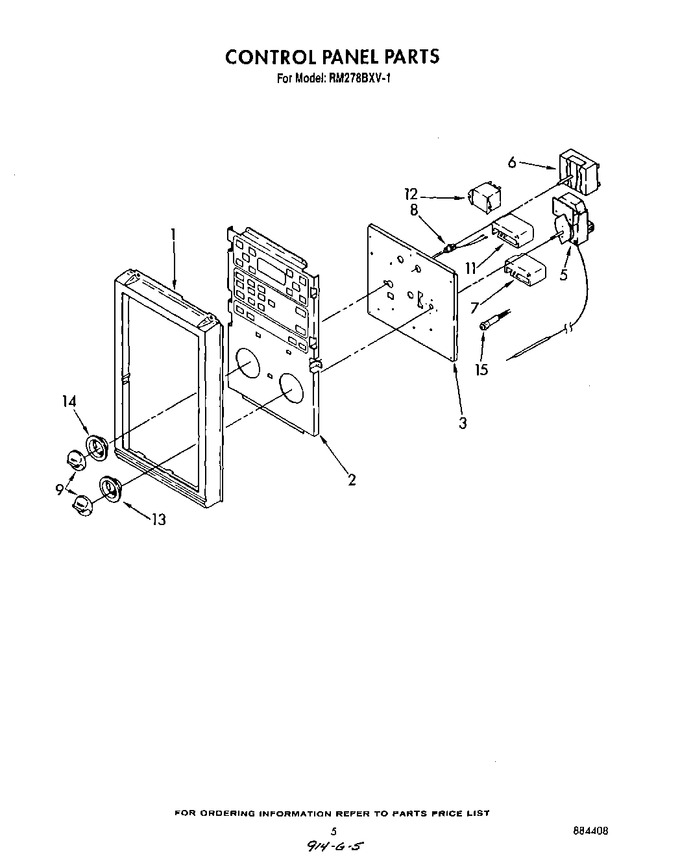

04 - Control Panel


05 - Magnetron And Air Flow


06 - Stirrer Drive


07 - Microwave Door And Latch


08 - Microwave Cabinet , Lit/optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148092		Frame, Control Panel		Appelez-nous	-
2	3147944		Module, Control		Appelez-nous	-
3	313818		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
5	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
5	3148931		Thermostat		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	3147235		Switch, Selector		Appelez-nous	-
7	314215		Screw, No.6		Appelez-nous	-
7	314210		Switch, Bake		Appelez-nous	-
8	3147517		Light, Indicator (2)		Appelez-nous	-
9	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 19.40
11	314215		Screw, No.6		Appelez-nous	-
11	314209		Switch, Broil		Appelez-nous	-
12	246131		Screw, 6ab X 3/8 (2)		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
13	254225		Screw, 8bt X 1/4		Appelez-nous	-
13	311073		Escutcheon, Thermostat		Appelez-nous	-
14	254225		Screw, 8bt X 1/4		Appelez-nous	-
14	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 49.73
15	3149034		Indicator, Light (250v)		Appelez-nous	-
