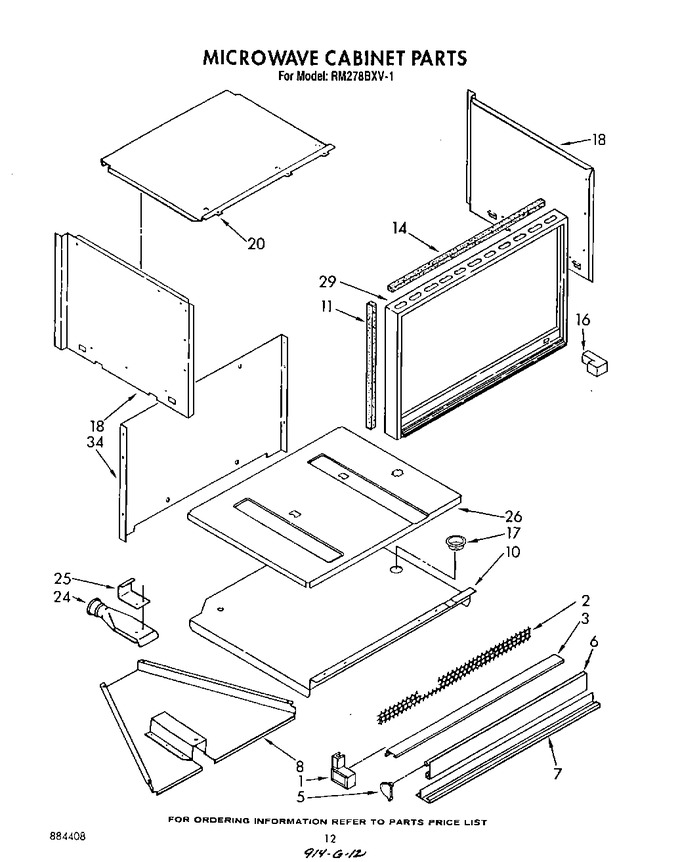

08 - Microwave Cabinet , Lit/optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148928		End Cap, L.h.		Appelez-nous	-
1	342043		Screw (2)		Appelez-nous	-
1	3148929		End Cap, R.h.		Appelez-nous	-
2	312432		Trim, Oven Vent		Appelez-nous	-
3	3148678		Trim, Top		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
3	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
5	3148698		End Trim, Vent Door (right Hand)		Appelez-nous	-
5	3148697		End Trim, Vent Door (left Hand)		Appelez-nous	-
6	3148617		Door, Vent		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
7	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 9.65
7	342043		Screw (2)		Appelez-nous	-
8	3170178		Box Air		Appelez-nous	-
10	3147494		Support Plate		Appelez-nous	-
10	WP488729		Screw, 8-18 X 1/2 (7)   (Replaces: 3148107)			Immediately	$ 7.01
11	3147595		Seal, Foam (2)		Appelez-nous	-
14	3147590		Seal, Foam (2)		Appelez-nous	-
16	307748		Screw (2)		Appelez-nous	-
16	3147750		Seal, Foam (2)		Appelez-nous	-
17	3147647		Bushing, Snap		Appelez-nous	-
18	3147493		Side Panel, L.h.		Appelez-nous	-
18	3147492		Side Panel, R.h.		Appelez-nous	-
20	3147497		Panel, Top		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
24	312696		Vent Tube		Appelez-nous	-
25	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	312698		Support, Vent Tube		Appelez-nous	-
25	WP488729		Screw, 8-18 X 1/2   (Replaces: 313638)			Immediately	$ 7.01
26	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.01
26	3147498		Panel, Support		Appelez-nous	-
29	3149800		Frame, Outer		Appelez-nous	-
34	WP261869		Citrine White (microwave Liner) Paint, Touch-up   (Replaces: 261869)				$ 23.85
34	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
34	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
34	285368		Platinum		Appelez-nous	-
34	786032		Ebony (microwave)		Appelez-nous	-
34	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
34	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
34	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
34	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
34	3147491		Cover, Rear		Appelez-nous	-
34	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
34	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
34	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
34	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
34	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
34	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
34	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
34	242826		Wire, Splicing (25 Ft. Roll) 18 Ga. 80~c Rating (white)		Appelez-nous	-
34	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
34	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
34	242831		Wire (14 Ga. 200 C Red)				$ 342.23
34	242832		Wire, Splicing (25 Ft. Roll) 18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating)		Appelez-nous	-
34	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
34	242829		Wire, Splicing (25 Ft. Roll) 18 Ga. 80~c Rating (red)		Appelez-nous	-
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
34	261890		Harvest Gold		Appelez-nous	-
34	285365		Toast		Appelez-nous	-
34	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
34	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
34	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
34	350942		Primer				$ 80.69
34	350941		Leveler (primer)		Appelez-nous	-
34	261900		Citrine White				$ 51.34
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	978883		Almond		Appelez-nous	-
34	261891		Harvest Gold		Appelez-nous	-
