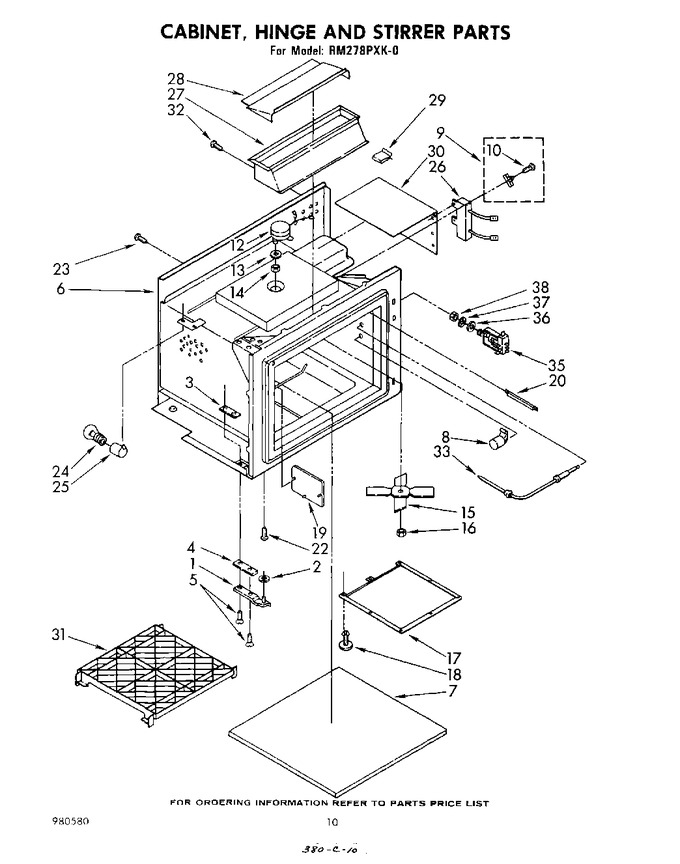

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329071		Hinge Door (bottom)		Appelez-nous	-
1	329070		Hinge Door (top)		Appelez-nous	-
2	312147		Washer		Appelez-nous	-
3	312092		Plate, Nut (2)		Appelez-nous	-
4	311991		Hinge Shim		Appelez-nous	-
5	311912		Screw, 10 X 32 (2)		Appelez-nous	-
7	309145		Base, Ceramic (alternate)		Appelez-nous	-
7	311058		Base, Ceramic (alternate (install W/ Silastic No.482338))		Appelez-nous	-
8	311286		Shelf, Support (4)		Appelez-nous	-
9	309279		Thermal Fuse		Appelez-nous	-
10	246131		Screw, 6a X 3/8		Appelez-nous	-
12	311515		Motor, Stirrer (alternate)		Appelez-nous	-
12	310950		Motor, Stirrer (alternate)		Appelez-nous	-
13	311245		Washer, Internal Lock		Appelez-nous	-
14	309768		Nut		Appelez-nous	-
15	309976		Stirrer Blade		Appelez-nous	-
16	307555		Nut, 1/4-20		Appelez-nous	-
17	309441		Cover, Stirrer		Appelez-nous	-
18	310423		Fastener (8)		Appelez-nous	-
19	307516		Cover		Appelez-nous	-
20	309437		Cover, Rivet		Appelez-nous	-
22	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
23	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
24	307519		Socket, Snap-in		Appelez-nous	-
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
26	309941		Reed Relay (alternate)		Appelez-nous	-
26	309623		Reed Relay (alternate)		Appelez-nous	-
26	WP965173		Reed Relay (screw, 8a X 3/8 (2))   (Replaces: 246132)			Immediately	$ 9.65
27	309444		Baffle, Air Exhaust		Appelez-nous	-
28	311702		Air Deflector		Appelez-nous	-
29	311149		Clip, Cover Air Duct (7)		Appelez-nous	-
30	311695		Cover, Air Duct		Appelez-nous	-
31	311318		Shelf, Convenience		Appelez-nous	-
32	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
33	312174		Probe, Temperature (alternate)		Appelez-nous	-
33	311439		Probe, Temperature (alternate)		Appelez-nous	-
35	309654		Jack, Probe		Appelez-nous	-
36	311245		Washer, Internal Lock		Appelez-nous	-
37	309769		Washer Probe		Appelez-nous	-
38	309768		Nut		Appelez-nous	-
