Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307676 Transformer Appelez-nous -
2 312185 Screw, 10-32 X 1/2 (4) Appelez-nous -
3 309795 Block, Fuse Appelez-nous -
4 310391 Shield, Fuse Appelez-nous -
5 WPW10017410 Fuse   (Replaces: 311167) In-Stock Immediately $ 19.05

6 308572 Bracket, Capacitor Appelez-nous -
7 258857 Screw, 10-32 X 1/2 Appelez-nous -
8 311724 Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate) Appelez-nous -
8 311723 Capacitor (includes 329163 Resistor, 2 Watt 10m) (alternate) Appelez-nous -
10 832836 Rectifier, High Voltage Appelez-nous -
12 310629 Screw, 8-32 X 3/8 Appelez-nous -
13 311466 Jumper, High Voltage Appelez-nous -
15 307529 Duct, Cooling Air Appelez-nous -
16 WP854334 Seal, Air Vent   (Replaces: 307618) Special Order $ 11.95

17 338177 Clip (2) Appelez-nous -
18 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

19 311467 Jumper, High Voltage Appelez-nous -
20 309084 Wire, High Voltage (2) Appelez-nous -
21 WPW10339879 Cable Tie (2)   (Replaces: 309330) Special Order $ 7.11

22 311461 Magnetron (alternate) Appelez-nous -
22 311505 Magnetron (alternate) Appelez-nous -
23 307564 Thermostat Appelez-nous -
24 246131 Screw, 6a X 3/8 (2) Appelez-nous -
25 308845 Fastener, Speed Nut (3) Appelez-nous -
26 311905 Mount, Motor (fan) Appelez-nous -
27 309849 Motor, Fan Appelez-nous -
28 311136 Nut (2) Appelez-nous -
29 307535 Blade, Fan Appelez-nous -
30 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

32 310300 Nut, 5mm Flange (2) Appelez-nous -
33 242828 Wire (12 Ga. 150 C Black) Appelez-nous -
33 242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
33 242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
33 242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
33 242823 Wire (14 Ga. 150 C Green) Appelez-nous -
33 242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
33 242829 Wire, Red 12 Ga. 150~c Appelez-nous -
33 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
33 242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

33 242826 Wire, White 14 Ga. 150~c Appelez-nous -
33 242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
33 242832 Wire, Yellow 14 Ga. 200~c Appelez-nous -
33 261881 Rotisserie Kit Appelez-nous -
33 307677 Browning Tray (micro) Appelez-nous -
33 WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 49.92

33 WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 49.92

33 261582 Grease Appelez-nous -
33 WP482338 Sealer, Silastic (3 Oz.)   (Replaces: 482338) In-Stock Immediately $ 57.16

33 591014 Adhesive Loctite (1/3 Oz.) Appelez-nous -
33 WP75614 Line, Splice (5)   (Replaces: 309551) Special Order $ 44.41

33 799832 Kit. Porcelain Repair (white) Appelez-nous -
33 310302 Gasket, Magnetron Appelez-nous -
33 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
LIT311764 Tech Sheet Appelez-nous -
LIT980580 List, Repair Parts Appelez-nous -
LIT309600 Booklet, Probe Appelez-nous -
LIT310929 Guide, Bi-level Cooking Appelez-nous -
LIT308500 Book, Cooking Guide Appelez-nous -
LIT310848 Cookbook Appelez-nous -
LIT311422 Use & Care Guide Appelez-nous -
LIT311436 Installation Instructions Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

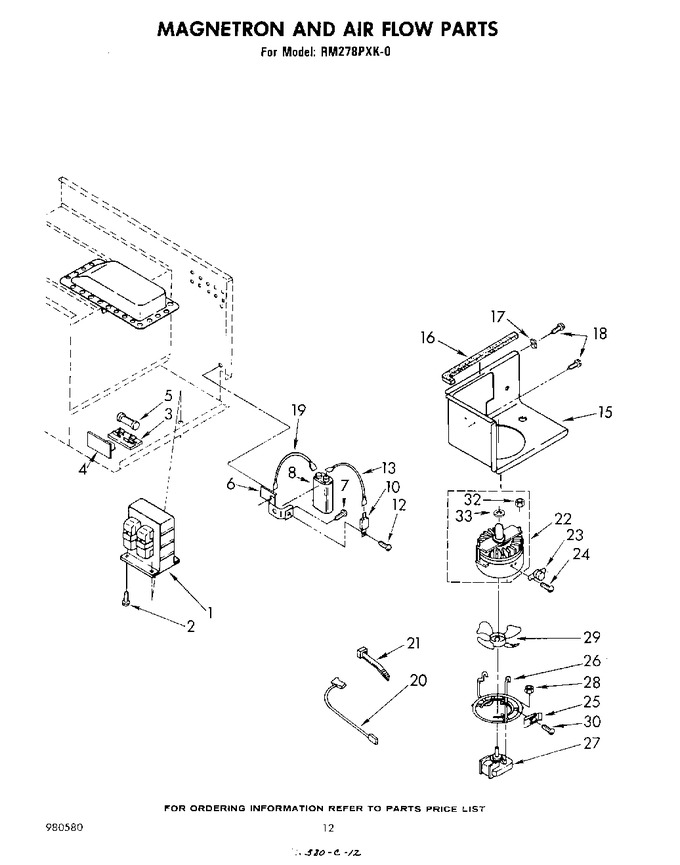

Diagram for RM278PXK0
