Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3170858 Front Frame Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 310770 Insulation Tray Appelez-nous -
6 WP488729 Screw 8-18 X 1/2 (14)   (Replaces: 3148107) In-Stock Immediately $ 7.01

6 311006 Side Wrapper (right Side) Appelez-nous -
6 311009 Side Wrapper (left Side) Appelez-nous -
7 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 311774 Support, Side Wrapper (4) Appelez-nous -
8 3148284 Seal, Door Appelez-nous -
9 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 310693 Baffle, Top Insulation Appelez-nous -
10 3149140 Side Trim R.h. Appelez-nous -
10 3149139 Side Trim L.h. Appelez-nous -
10 WP488729 Screw, 8-18 X 1/2 (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

11 328756 Oven (30`` Pyro) Appelez-nous -
11 311056 Screw (3) Appelez-nous -
12 WP681414 Screw, 10-16 X 1/2 (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 310713 Bracket, Oven Mounting (2) Appelez-nous -
13 257314 Plug Button Appelez-nous -
14 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 74.64

15 328801 Hinge Ear, R.h. Appelez-nous -
15 328802 Hinge Ear, L.h. Appelez-nous -
16 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

16 310659 Plate, Side Panel (2) Appelez-nous -
17 329713 Channel Arm (2) Appelez-nous -
18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Ring, Retainer (2) Appelez-nous -
20 3148669 Switch, Lock Appelez-nous -
21 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

23 312697 Tube, Vent Appelez-nous -
24 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 310839 Eliminator, Smoke Appelez-nous -
24 WP488729 Screw, 8a X 3/8   (Replaces: 313638) In-Stock Immediately $ 7.01

25 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 310662 Plate, Cover Appelez-nous -
26 WP308180 Unit, Bake (240v)   (Replaces: 661170) Special Order $ 96.92

26 246127 Screw, 10-32 X 5/8 (2) Appelez-nous -
27 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

27 246127 Screw, 10-32 X 5/8 (4) Appelez-nous -
28 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
28 660556 Socket, Oven Light Appelez-nous -
29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

30 308039 Cover, Light Appelez-nous -
31 308038 Retainer, Light Appelez-nous -
32 311982 Coverplate Appelez-nous -
33 311056 Screw (2) Appelez-nous -
33 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

33 3171148 Latch Assembly Appelez-nous -
34 98106 Screw (2) Appelez-nous -
34 308185 Safety Switch Appelez-nous -
35 309245 Insulator, Switch Appelez-nous -
36 309258 Screw, 6 X 3/8 (2) Appelez-nous -
36 313035 Terminal, Shield Appelez-nous -
37 310825 Latch, Handle Appelez-nous -
37 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
38 246135 Screw, 8 X 5/16 Appelez-nous -
38 311253 Knob, Latch Handle Appelez-nous -
39 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

39 310345 Switch, Door Special Order $ 94.86

40 3147864 Insulator, Switch Appelez-nous -
41 310433 Insulation, Wrap Appelez-nous -
42 310434 Insulation, Back Appelez-nous -
43 3149328 Insulation, Top Appelez-nous -
47 309029 Screw, 8-15 X 1/2 (3) Appelez-nous -
47 3149359 Grill, Bottom Appelez-nous -
52 3149542 Back Panel Appelez-nous -
52 WP488729 Screw, 8-18 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

53 308043 Screw, 10-12 X 7/8 (2) Appelez-nous -
53 3147001 Screw, No.8 Appelez-nous -
53 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

53 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

54 310458 Cover, Bottom Appelez-nous -
55 311592 Angle, Support (2) Appelez-nous -
55 WP488729 Screw, 8-18 X 12/ (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

56 WP488729 Screw, 8-18 X 1/2 (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

56 311012 Cover, Rear Appelez-nous -
59 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

60 4396923 Grid, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

61 308173 Rack, Oven Appelez-nous -
62 308172 Rack, Oven (offset) Appelez-nous -
63 3149142 Shield, Air Appelez-nous -
63 309080 Screw 8-32 X 3/8 Appelez-nous -
LIT313358 Book, Cooking Guide Appelez-nous -
LIT3149026 Tech Sheet Appelez-nous -
LIT884389 List, Repair Parts Appelez-nous -
LIT312909 Use & Care Guide (microwave) Appelez-nous -
LIT3147287 Installation Instructions Appelez-nous -
LIT312910 Use & Care Guide Appelez-nous -
LIT311895 Cookbook (microwave) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

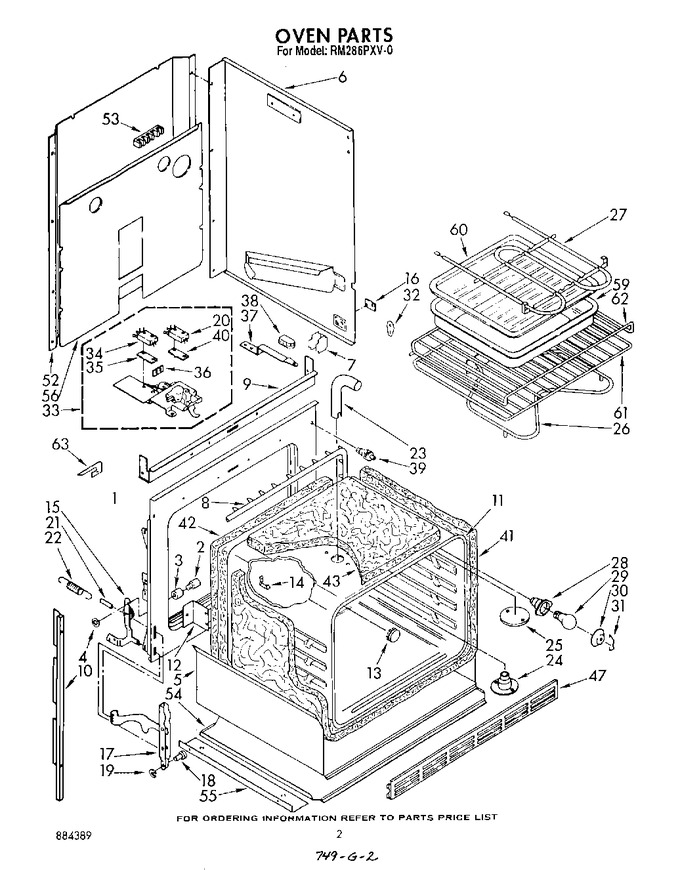

Diagram for RM286PXV0
