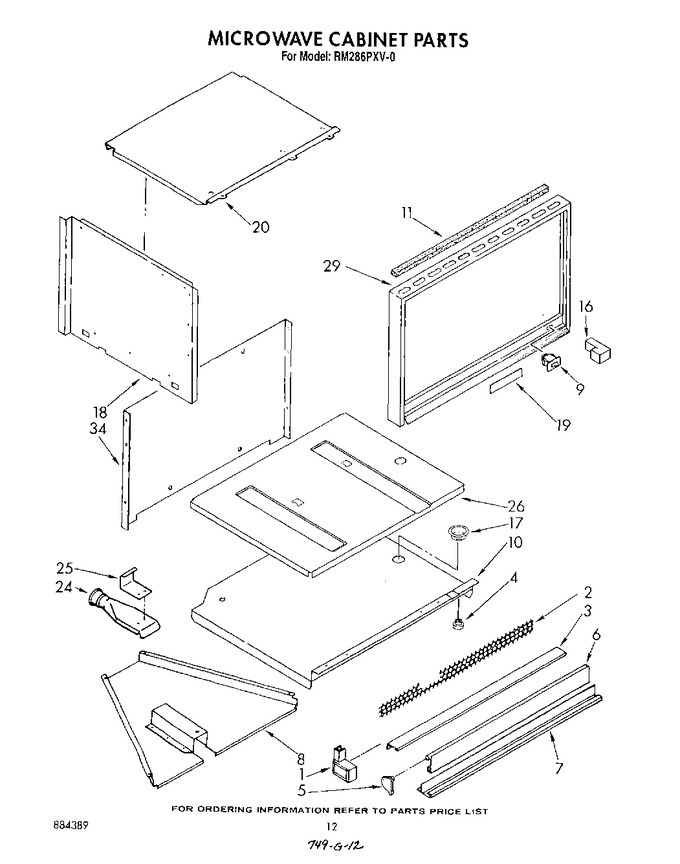

08 - Cabinet , Literature And Optional


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342043		Screw (2)		Appelez-nous	-
1	3148929		End Cap, R.h.		Appelez-nous	-
1	3148928		End Cap, L.h.		Appelez-nous	-
2	312432		Trim, Oven Vent		Appelez-nous	-
3	3149363		Trim, Top		Appelez-nous	-
3	342043		Screw (2)		Appelez-nous	-
3	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
4	309552		Snap Bushing		Appelez-nous	-
5	3148472		End Trim, Vent Door R.h.		Appelez-nous	-
5	3148471		End Trim, Vent Door L.h.		Appelez-nous	-
6	3149603		Door, Vent		Appelez-nous	-
7	3148618		Trim, Bottom		Appelez-nous	-
7	246131		Screw (2)		Appelez-nous	-
8	3170178		Box Air		Appelez-nous	-
9	3149360		Switch, Rocker				$ 89.01
10	WP488729		Screw, 8-18 X 1/2 (7)   (Replaces: 3148107)			Immediately	$ 7.01
10	3147494		Support Plate		Appelez-nous	-
11	3147590		Seal, Foam (bottom)		Appelez-nous	-
11	3149362		Seal, Foam (top)		Appelez-nous	-
11	3149361		Seal, Foam (side (2))		Appelez-nous	-
16	3147750		Seal, Foam (2)		Appelez-nous	-
17	3147647		Bushing, Snap		Appelez-nous	-
18	3147492		Side Panel, R.h.		Appelez-nous	-
18	3147493		Side Panel, L.h.		Appelez-nous	-
19	312330		Adhesive		Appelez-nous	-
20	3147497		Panel, Top		Appelez-nous	-
20	WP488729		Screw, 8-18 X 1/2 (8)   (Replaces: 3148107)			Immediately	$ 7.01
24	312696		Vent Tube		Appelez-nous	-
25	WP488729		Screw, 8-18 X 1/2   (Replaces: 313638)			Immediately	$ 7.01
25	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	312698		Support, Vent Tube		Appelez-nous	-
26	3147498		Panel, Support		Appelez-nous	-
29	3149802		Frame, Outer		Appelez-nous	-
34	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
34	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
34	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
34	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
34	285368		Platinum (uncut)		Appelez-nous	-
34	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
34	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
34	261582		Grease		Appelez-nous	-
34	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
34	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
34	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
34	3147491		Cover, Rear		Appelez-nous	-
34	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
34	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
34	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
34	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
34	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
34	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
34	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
34	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
34	242831		Wire (14 Ga. 200 C Red)				$ 342.23
34	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
34	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
34	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
34	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
34	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
34	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
34	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
34	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
34	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
34	261888		New Avocado		Appelez-nous	-
34	261890		Harvest Gold		Appelez-nous	-
34	285365		Toast		Appelez-nous	-
34	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
34	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
34	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
34	206992		Primer (white)		Appelez-nous	-
34	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
34	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
34	978883		Almond (uncut)		Appelez-nous	-
34	261891		Harvest Gold (uncut)		Appelez-nous	-
34	261889		New Avocado (uncut)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
