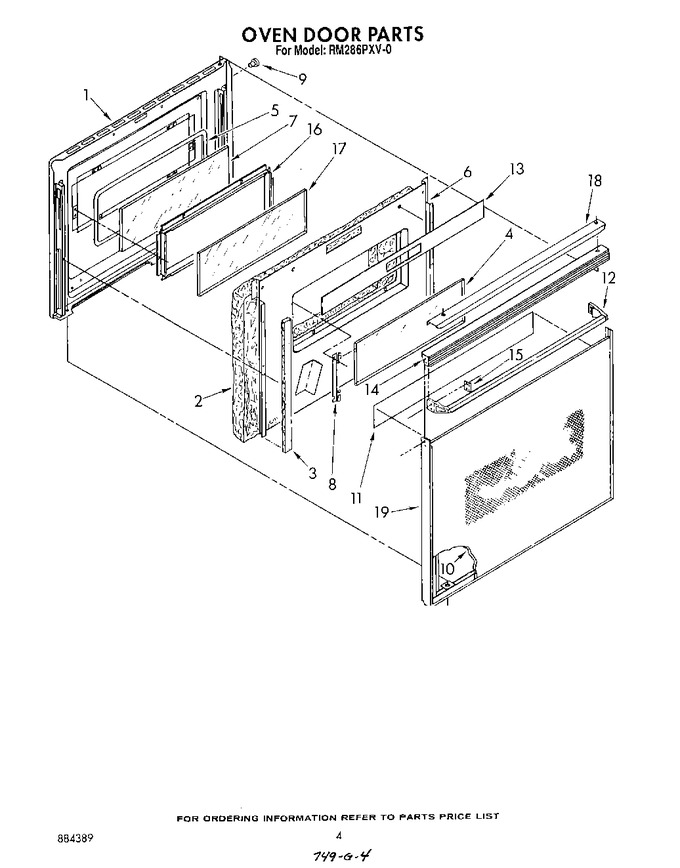

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170706		Liner, Door		Appelez-nous	-
2	3147951		Insulation, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Window		Appelez-nous	-
7	WP3169203		Glass, Inner   (Replaces: 313004)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3149049		Glass, Panel		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3149354		Handle, Door		Appelez-nous	-
12	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
13	3148680		Shield, Door		Appelez-nous	-
13	254225		Screw (2)		Appelez-nous	-
14	307748		Screw (3)		Appelez-nous	-
14	3149355		Top, Door		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 135.71
18	3149473		Cap, Top		Appelez-nous	-
19	3148235		Frame, Glass Panel		Appelez-nous	-
