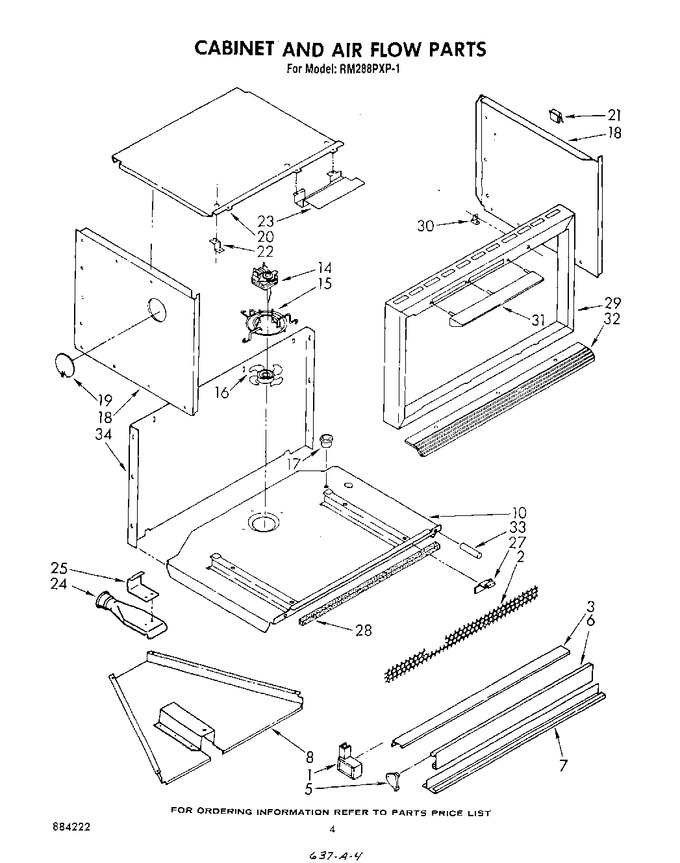

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311650 | End Cap, R.h. |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | 311649 | End Cap, L.h. |
|
- | |||||
| 2 | 312432 | Trim, Oven Vent |
|
- | |||||
| 3 | 312446 | Trim, Top |
|
- | |||||
| 3 | 342043 | Screw (2) |
|
- | |||||
| 3 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 5 | 310832 | End Trim, Vent (left Side) |
|
- | |||||
| 5 | 310833 | End Trim, Vent (right Side) |
|
- | |||||
| 6 | 312447 | Door, Vent |
|
- | |||||
| 7 | 311190 | Trim, Bottom |
|
- | |||||
| 7 | 309100 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 7 | 342043 | Screw (2) |
|
- | |||||
| 8 | 329829 | Box Air |
|
- | |||||
| 10 | 329828 | Support Plate |
|
- | |||||
| 10 | WP488729 | Screw, 8-18 X 1/2 (7) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 14 | 660544 | Motor Fan |
|
- | |||||
| 14 | 310921 | Motor, Fan (alternate) |
|
- | |||||
| 14 | 307602 | Nut, 6-32 Hex (2) |
|
- | |||||
| 14 | 310221 | Motor Fan (alternate) |
|
- | |||||
| 15 | 310420 | Mount, Fan Motor |
|
- | |||||
| 16 | 307535 | Blade, Fan |
|
- | |||||
| 17 | 308410 | Snap Bushing |
|
- | |||||
| 18 | 311644 | Side Panel, R.h. |
|
- | |||||
| 18 | 311643 | Side Panel, L.h. |
|
- | |||||
| 19 | 311698 | Cover, Light |
|
- | |||||
| 19 | WP488729 | Screw, 8-18 X 1/2 (1) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 20 | 313470 | Panel, Top |
|
- | |||||
| 20 | WP488729 | Screw, 8-18 X 1/2 (8) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 21 | 338177 | Clip (3) |
|
- | |||||
| 21 | 311311 | Clip (2) |
|
- | |||||
| 22 | 311696 | Bracket, Support |
|
- | |||||
| 22 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 23 | 311687 | Probe, Shield |
|
- | |||||
| 23 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 24 | 312696 | Vent Tube |
|
- | |||||
| 25 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 25 | 312698 | Support, Vent Tube |
|
- | |||||
| 27 | 311638 | Bracket, Front Support |
|
- | |||||
| 28 | 309814 | Seal Foam |
|
- | |||||
| 29 | 312600 | Frame, Outer |
|
- | |||||
| 30 | 307748 | Screw, 10a X 1/2 |
|
- | |||||
| 30 | 311697 | Bracket, Control Panel Mounting |
|
- | |||||
| 31 | 310953 | Pushnut, Ziptwist (3) |
|
- | |||||
| 31 | 309499 | Deflector, Air |
|
- | |||||
| 32 | WP488627 | Screw, 8a X 1/2 (3) (Replaces: 338156) |
|
$ 6.81 | |||||
| 32 | 311700 | Hood, Lower Vent |
|
- | |||||
| 33 | 311692 | Grommet, Plastic (2) |
|
- | |||||
| 33 | 311699 | Screw, 10a X 1-5/8 (2) |
|
- | |||||
| 34 | WP488729 | Screw, 8-18 X 1/2 (12) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 34 | 311651 | Cover, Rear |
|
- |
