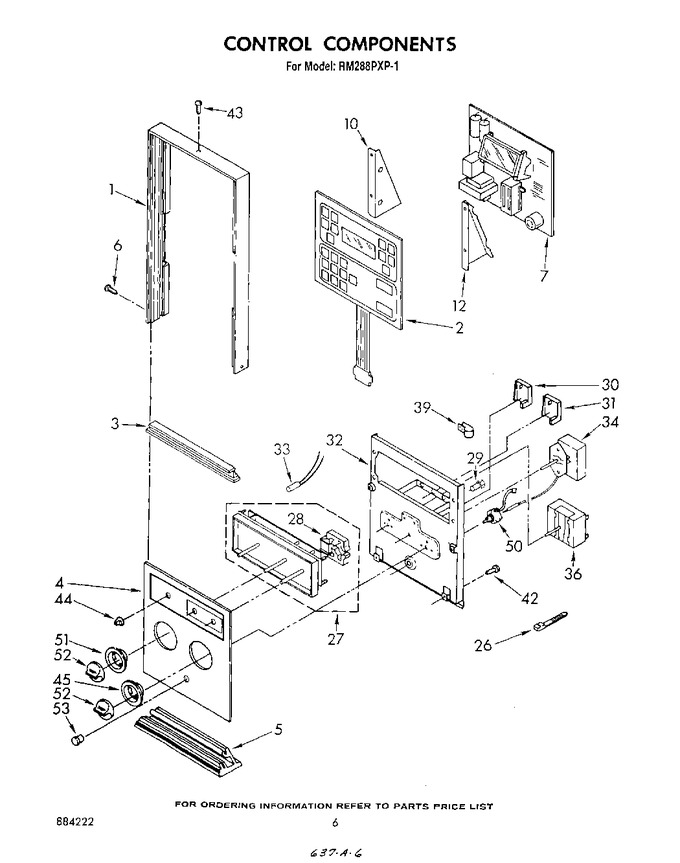

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312602		Frame, Control Panel		Appelez-nous	-
2	313100		Membrane, Switch		Appelez-nous	-
3	312743		Splice Panel		Appelez-nous	-
4	308297		Seal, Foam		Appelez-nous	-
4	313135		Control Panel, Glass		Appelez-nous	-
5	312603		Bottom Cap, Control Panel		Appelez-nous	-
6	348689		Screw, No. 8 (2)				$ 66.92
7	61533		Board, Power Control		Appelez-nous	-
10	313098		Bracket, P.c. Board		Appelez-nous	-
12	313099		Bracket, P.c. Board		Appelez-nous	-
12	WP313808		Screw, 6a X 1/4 (2)   (Replaces: 311932)				$ 6.84
26	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
27	309434		Timer, Auto (includes Illus. 28)		Appelez-nous	-
28	308443		Motor, Timer		Appelez-nous	-
29	309645		Nut, Aluminum (4)		Appelez-nous	-
30	310643		Switch, Broil		Appelez-nous	-
31	311585		Switch, Bake		Appelez-nous	-
32	329772		Bracket, Control Mounting		Appelez-nous	-
32	WP681414		Screw, 10-32 X 1/2 (2)   (Replaces: 690989)			Immediately	$ 7.07
33	313494		Indicator Light 250v (3)		Appelez-nous	-
34	313530		Thermostat, Oven (lower)		Appelez-nous	-
36	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
36	310006		Switch, Selector		Appelez-nous	-
39	312713		Screw, 8-32 X 3/8		Appelez-nous	-
39	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
39	WP308605		Strain Relief   (Replaces: 308603)				$ 10.08
39	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
42	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
43	312248		Screw, 8-32 X 1/2		Appelez-nous	-
44	330206		Knob, Timer (3)		Appelez-nous	-
44	313311		Spring (3)		Appelez-nous	-
45	254225		Screw, 8bt X 1/4		Appelez-nous	-
45	311073		Escutcheon		Appelez-nous	-
50	311441		Switch, Push		Appelez-nous	-
51	WP311068		Escutcheon   (Replaces: 311068)				$ 49.73
51	254225		Screw, 8bt X 1/4		Appelez-nous	-
52	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
53	313030		Bezel Switch		Appelez-nous	-
