SELECT A DIAGRAM

02 - Oven


03 - Cabinet And Air Flow


04 - Control Components


05 - Magnetron And Air Flow


06 - Cabinet And Stirrer


07 - Door And Latch


08 - Cabinet And Hinge


09 - Oven Door


10 - Wiring Harness , Literature And Optional


11 - Section

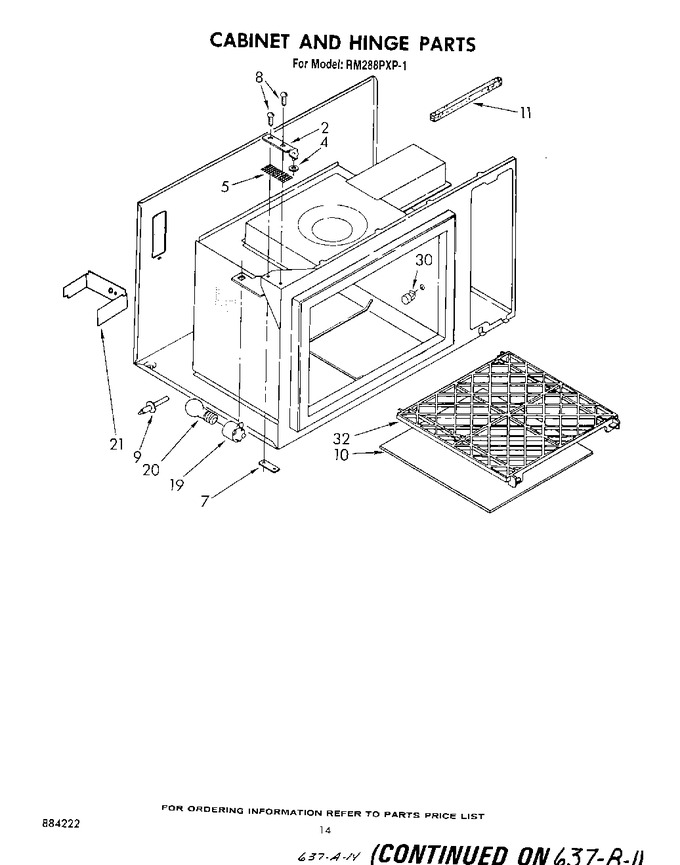

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	330015		Hinge Assembly (bottom)		Appelez-nous	-
2	330016		Hinge Assembly (top)		Appelez-nous	-
4	312147		Washer, Flat		Appelez-nous	-
5	312744		Hinge, Shim Locking (2)		Appelez-nous	-
7	312741		Plate, Nut (2)		Appelez-nous	-
8	312742		Screw, 12-24 X 3/4 (4)		Appelez-nous	-
9	313456		Rivet (3)		Appelez-nous	-
10	311058		Shelf, Microwave (alt.)		Appelez-nous	-
10	660561		Shelf, Microwave		Appelez-nous	-
10	312579		Shelf, Microwave (alt.) (install W/silastic No. 482338)		Appelez-nous	-
11	313501		Seal, Foam		Appelez-nous	-
19	307519		Socket, Snap-in		Appelez-nous	-
20	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
21	312713		Screw, 8-32 X 3/8		Appelez-nous	-
21	309554		Shield, Lamp		Appelez-nous	-
30	161463		Screw, 10a X 2 (4)		Appelez-nous	-
30	311286		Support, Shelf (4)		Appelez-nous	-
32	311318		Shelf, Convenience		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
