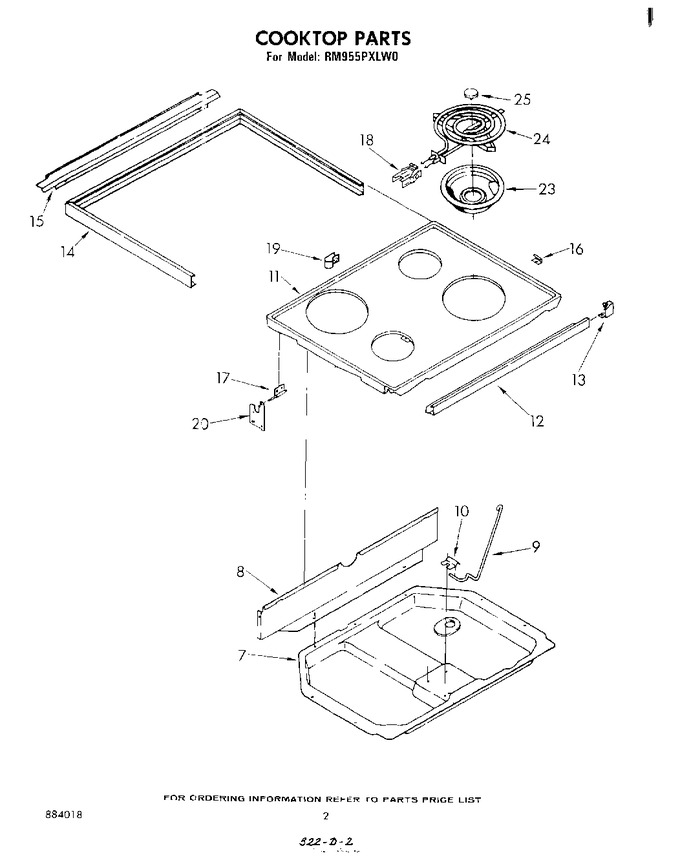

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WP3390631 | Screw, 10a X 3/8 (6) (Replaces: 309112) |
|
$ 7.04 | |||||
| 7 | 308827 | Burner Box |
|
- | |||||
| 8 | 308968 | Shield, Wiring |
|
- | |||||
| 9 | WP681414 | Screw, 10-32 Hex (ground) (3) (Replaces: 343631) |
|
Immediately | $ 7.07 | ||||
| 9 | 307968 | Rod, Cooktop |
|
- | |||||
| 10 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 7.04 | |||||
| 10 | 307967 | Retainer, Cooktop |
|
- | |||||
| 11 | 308424 | Cooktop (harvest Gold) |
|
- | |||||
| 11 | 308427 | Cooktop (white) |
|
- | |||||
| 11 | 309013 | Cooktop (almond) |
|
- | |||||
| 11 | 338177 | Cooktop (clip (2)) |
|
- | |||||
| 12 | 311911 | Trim, Cooktop Front |
|
- | |||||
| 13 | 98084 | Clip (4) |
|
- | |||||
| 13 | 309051 | Screw, 8a X 3/8 (2) |
|
- | |||||
| 13 | 308445 | End Cap Trim R.h. |
|
- | |||||
| 13 | 308444 | End Cap Trim L.h. |
|
- | |||||
| 14 | 308619 | Trim, Cooktop Side & Rear |
|
- | |||||
| 14 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 14 | W11693756 | Screw, 8a X 5/8 (4) (Replaces: 258665) |
|
Immediately | $ 12.65 | ||||
| 15 | 308981 | Trim, Rear |
|
- | |||||
| 16 | 308621 | Bracket, Cooktop (6) |
|
- | |||||
| 16 | WP308685 | Screw, 10a X 1/2 (6) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 17 | 328239 | Hinge, Leaf Cooktop R.h. |
|
- | |||||
| 17 | 328238 | Hinge, Leaf Cooktop L.h. |
|
- | |||||
| 17 | WP308685 | Screw, 10a X 1/2 (4) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 18 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 6.84 | |||||
| 18 | 330031 | Receptacle Clip (4) (Replaces: 258858) |
|
Immediately | $ 14.48 | ||||
| 19 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 19 | WP488366 | Strain Relief (Replaces: 308601) |
|
$ 10.06 | |||||
| 19 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 19 | WP308605 | Strain Relief (2) (Replaces: 308605) |
|
$ 10.08 | |||||
| 20 | WP308544 | Screw, 10-24 X 1/2 (4) (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 20 | 308993 | Hinge (2) |
|
- | |||||
| 23 | WPW10196406 | Reflector Pan (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 23 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 24 | WP660533 | Unit, Surface (8`` (2) (includes Illus. 25)) (Replaces: 312560) |
|
Immediately | $ 39.47 | ||||
| 24 | WPY04100165 | Unit, Surface (6`` (2)) (Replaces: 312557) |
|
Immediately | $ 50.62 | ||||
| 25 | 256904 | Medallion |
|
- |
