Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327871 Main Chassis (white) Appelez-nous -
1 327875 Main Chassis (almond) Appelez-nous -
1 327874 Main Chassis (harvest Gold) Appelez-nous -
2 238614 Bumper, Cooktop (2) Special Order $ 72.68

3 WP233550 Leg Leveling (4)   (Replaces: 233550) Special Order $ 7.16

4 327886 Frame, Front Appelez-nous -
4 WP681414 Screw, 10-16 X 1/2 (13)   (Replaces: 343641) In-Stock Immediately $ 7.07

5 307985 Pin, Hinge Special Order $ 29.54

7 308306 Pushnut Appelez-nous -
8 WP681414 Screw, 10-32 Hex (4)   (Replaces: 343631) In-Stock Immediately $ 7.07

8 327891 Hinge (l.h.) Appelez-nous -
8 327890 Hinge (r.h.) Appelez-nous -
9 311056 Screw (3) Appelez-nous -
9 329001 Oven (30`` Continuous Clean) Appelez-nous -
10 307856 Socket, Lamp (alternate) Appelez-nous -
10 308043 Socket, Lamp (screw, 10-12 X 7/8 (2)) Appelez-nous -
10 310208 Socket, Lamp (alternate) In-Stock Immediately $ 36.34

11 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

13 308207 Spring, Door Stop Appelez-nous -
15 309107 Seal, Oven Special Order $ 63.50

16 329712 Channel, Arm (2) Appelez-nous -
17 257314 Plug Button Appelez-nous -
18 311220 Bracket, Oven (mounting) Appelez-nous -
18 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

19 309024 Vent, Oven Appelez-nous -
19 WP308685 Screw, 10a X 1/2 (2)   (Replaces: 253549) In-Stock Immediately $ 7.08

20 98005642 Clip, Therm Bulb (2)   (Replaces: 258139) In-Stock Immediately $ 74.64

21 WP307986 Hinge Pin (2)   (Replaces: 307986) Special Order $ 11.78

22 307594 Ring, Retainer (2) Appelez-nous -
23 308127 Spring, Oven Door (2) Special Order $ 11.75

24 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

25 310345 Switch, Door Special Order $ 94.86

26 312378 Support, Tubing R.h. Appelez-nous -
26 312533 Support, Tubing L.h. Appelez-nous -
33 346772 Ballast (alternate) Appelez-nous -
33 WP681414 Ballast (screw, 10-16 X 1/2 (2))   (Replaces: 343641) In-Stock Immediately $ 7.07

33 685591 Ballast (alternate) Appelez-nous -
34 310210 Screw, 8-32 X 5/16 (2) Appelez-nous -
34 311909 Locator, Cooktop Appelez-nous -
35 246131 Screw, 6a X 3/8 Appelez-nous -
35 310952 Plate Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

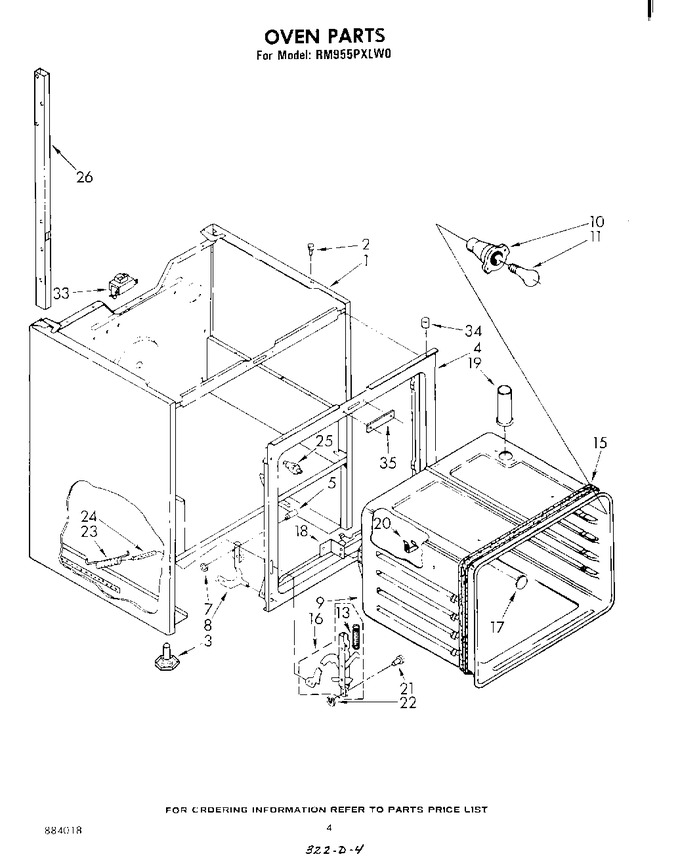

Diagram for RM955PXLW0
