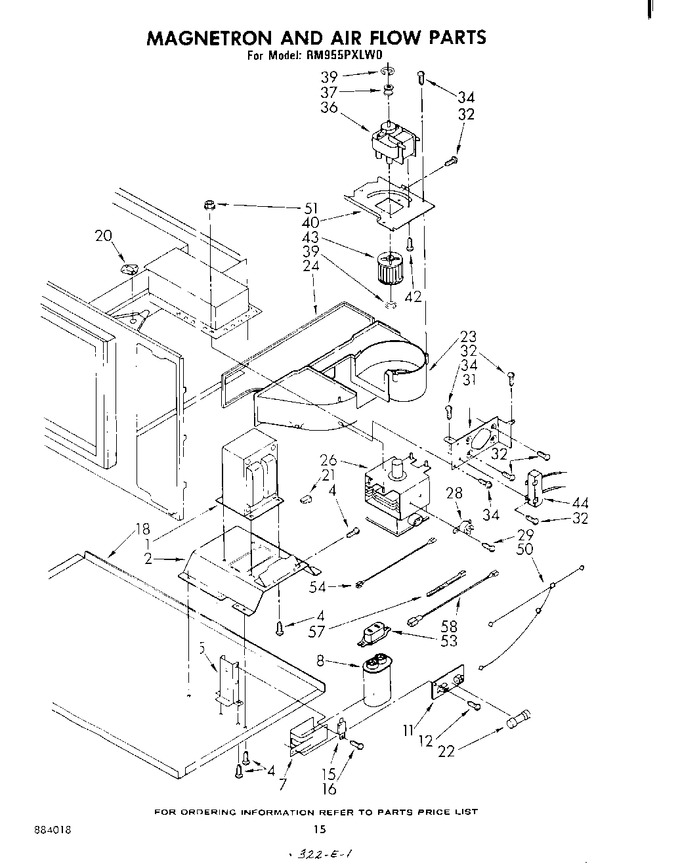

09 - Magnetron And Air Flow


10 - Cabinet And Stirrer


11 - Door And Latch


12 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311937		Transformer		Appelez-nous	-
2	311913		Bracket, Transformer		Appelez-nous	-
4	312185		Screw, 10-32 X 1/2 Hex Washer W/ground Ring (10)		Appelez-nous	-
5	311917		Bracket, Capacitor		Appelez-nous	-
7	311918		Strap, Capacitor		Appelez-nous	-
8	311939		Capacitor (alternate)		Appelez-nous	-
8	311940		Capacitor (alternate)		Appelez-nous	-
11	311941		Fuseblock		Appelez-nous	-
12	WP489069		Screw, 8-18 X 1/2 Hex Washer W/lock Nibs (4)   (Replaces: 311938)			Immediately	$ 7.07
15	312482		Rectifier, High Voltage		Appelez-nous	-
16	WP489128		Screw, 8-32 X 7/16   (Replaces: 311722)				$ 9.79
20	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
20	311719		Thermostat		Appelez-nous	-
21	307772		Housing Receptacle		Appelez-nous	-
22	WPW10017410		Fuse (15 Amp)   (Replaces: 311167)			Immediately	$ 19.05
23	312614		Air Duct (horizontal)		Appelez-nous	-
24	WP339956		Seal, Air Duct   (Replaces: 311956)			Immediately	$ 7.77
26	311993		Magnetron (alternate)		Appelez-nous	-
26	311994		Magnetron (alternate)		Appelez-nous	-
26	311992		Magnetron (alternate)		Appelez-nous	-
28	307564		Thermostat, Fixed		Appelez-nous	-
29	310410		Screw, 6a X 3/8 (2)		Appelez-nous	-
31	311915		Mounting Brace, Duct		Appelez-nous	-
32	WP90767		Screw, 8a X 3/8 Hex Washer Head Tapping (5)   (Replaces: 90767)			Immediately	$ 7.04
34	346893		Screw, 11-16 X 1/2 Double Load Space Thread (7)		Appelez-nous	-
36	312613		Transmotor (alternate)		Appelez-nous	-
36	312140		Transmotor (alternate)		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring (2)		Appelez-nous	-
40	311916		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw, 6 X 8/32 Round Head Cross Recess (4)   (Replaces: 311865)				$ 6.61
43	311920		Wheel, Blower		Appelez-nous	-
44	312137		Reed Relay (alternate)		Appelez-nous	-
44	312136		Reed Relay (alternate)		Appelez-nous	-
50	312385		Cable, Support		Appelez-nous	-
51	310300		Flange Nut (4)		Appelez-nous	-
53	312294		Cover, Capacitor		Appelez-nous	-
54	312009		Jumper, High Voltage Red 6-3/4`` (2)		Appelez-nous	-
57	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
58	312301		High Voltage Lead, Gray 6-3/4`` (2)		Appelez-nous	-
