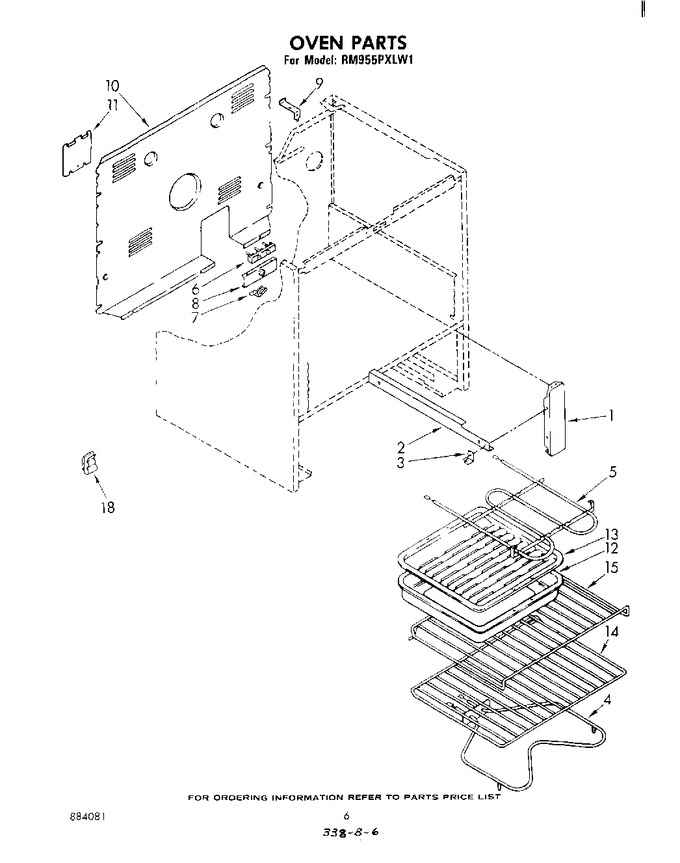

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307981		Bracket, Mounting (2)		Appelez-nous	-
2	307983		Rail L.h. (includes Illus. 3)		Appelez-nous	-
2	307982		Rail R.h. (includes Illus. 3)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
3	307979		Glide, Front (2)		Appelez-nous	-
4	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
4	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
5	246127		Unit, Broil (screw, 10-32 X 5/8 (2))		Appelez-nous	-
5	WP660579		Unit, Broil (alternate)   (Replaces: 311714)				$ 140.80
5	WP660579		Unit, Broil (alternate)   (Replaces: 311713)				$ 140.80
6	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
7	308498		Ground Strap		Appelez-nous	-
7	WP681414		Screw, 10-32   (Replaces: 343631)			Immediately	$ 7.07
8	307970		Bracket, Service		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
9	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
9	309102		Stand-off (bracket)		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
10	307971		Cover, Rear		Appelez-nous	-
11	WP308544		Screw, 10-24 X 1/2 (2)   (Replaces: 308544)			Immediately	$ 6.98
11	307972		Cover, Service		Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 310976)			Immediately	$ 52.04
13	4396923		Rack, Broiler   (Replaces: 258171)			Immediately	$ 52.04
14	308173		Rack, Oven (straight)		Appelez-nous	-
15	308172		Rack, Oven (offset)		Appelez-nous	-
18	309211		Clip, Tube		Appelez-nous	-
