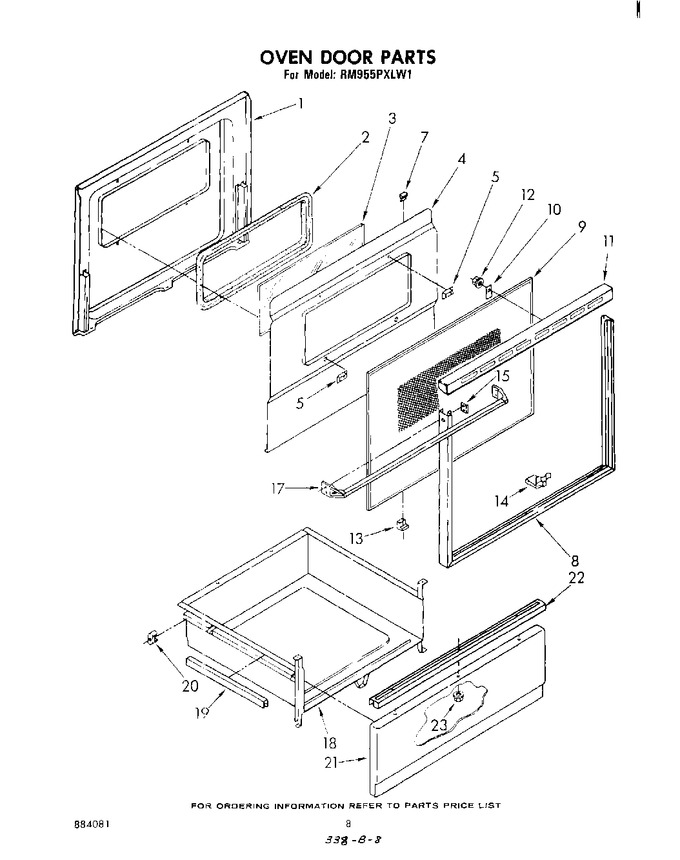

05 - Oven Door


06 - Upper Chassis And Components


07 - Control Panel


08 - Cabinet And Hinge


09 - Magnetron And Air Flow


10 - Cabinet And Stirrer


11 - Door And Latch


12 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329685		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1\2 Black (4)		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (4)		Appelez-nous	-
7	312783		Bumper (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (black) (5)		Appelez-nous	-
12	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
13	308293		Seal, Foam (2)		Appelez-nous	-
14	310706		Clip, Glass (10)		Appelez-nous	-
15	311506		Clip (2)		Appelez-nous	-
17	WP355515		Screw, Handle (4)   (Replaces: 355515)				$ 6.90
17	312721		Handle, Oven Door		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	309923		Panel Drawer (black)		Appelez-nous	-
22	307956		Handle, Drawer		Appelez-nous	-
22	WP912618		Screw (3)   (Replaces: 312578)				$ 6.98
23	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
