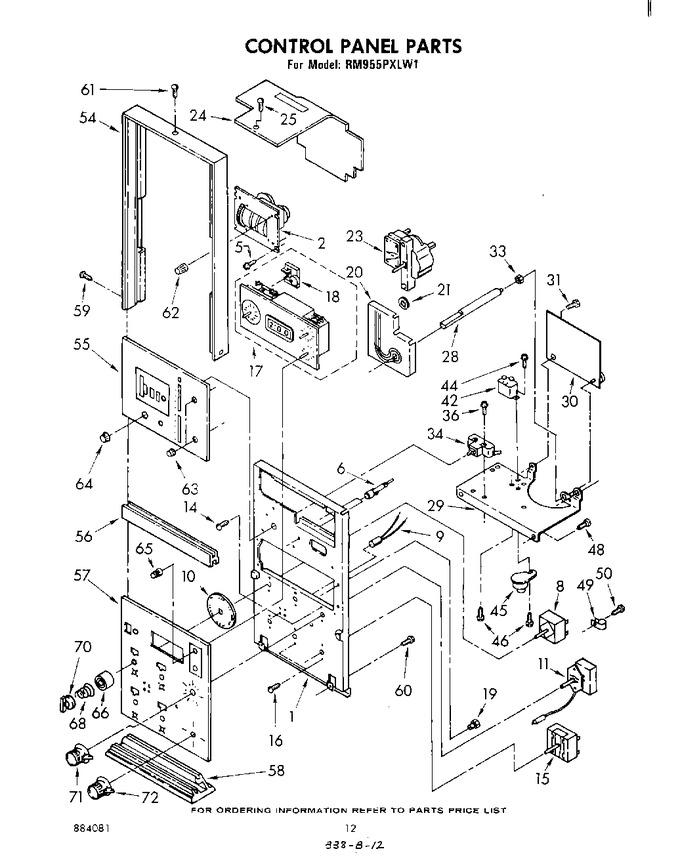

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329790 | Bracket, Control Mounting |
|
- | |||||
| 2 | 307531 | Timer, Digital |
|
- | |||||
| 5 | 309258 | Screw, 6 X 3/8b (2) |
|
- | |||||
| 6 | 311547 | Light, Indicator (125v) |
|
- | |||||
| 8 | 308119 | Screw, 8-32 X 3/16 (8) |
|
- | |||||
| 8 | 308475 | Switch, Infinite (4) |
|
- | |||||
| 9 | 311545 | Light, Indicator (250v) (7) |
|
- | |||||
| 10 | 309489 | Dial, Surface Unit (4) |
|
- | |||||
| 11 | 309611 | Thermostat (lower Oven) |
|
- | |||||
| 14 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 15 | 310394 | Switch, Selector |
|
- | |||||
| 16 | 308119 | Screw, 8-32 X 3/16 (2) |
|
- | |||||
| 17 | 310325 | Timer, Digital (includes Illus. 18) |
|
- | |||||
| 18 | 308594 | Motor, Timer |
|
- | |||||
| 19 | 309645 | Nut, Extension |
|
- | |||||
| 20 | 312755 | Indicator, Information Control |
|
- | |||||
| 21 | 309983 | Clip, Push-on (3) |
|
- | |||||
| 23 | 309548 | Indicator, Temperature |
|
- | |||||
| 23 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 24 | 328431 | Shield Assembly |
|
- | |||||
| 25 | WP486754 | Screw, 6-32 X 1/4 (Replaces: 246119) |
|
$ 6.75 | |||||
| 28 | 310279 | Shaft, Potentiometer |
|
- | |||||
| 29 | 309484 | Bracket, P.c. Board |
|
- | |||||
| 30 | 329907 | P/c Board & Potentiometer |
|
- | |||||
| 31 | 309080 | Screw (2) |
|
- | |||||
| 33 | 307640 | Palnut |
|
- | |||||
| 34 | 307649 | Switch, Push Start (include Illus. 64) |
|
- | |||||
| 36 | 98106 | Screw |
|
- | |||||
| 42 | 311507 | Relay, Power |
|
- | |||||
| 44 | WP90767 | Screw, 8a X 3/8 (2) (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 45 | 310351 | Buzzer, End-of-cycle |
|
- | |||||
| 46 | 309258 | Screw, 6 X 3/8b |
|
- | |||||
| 48 | 254225 | Screw, 8bt X 1/4 (3) |
|
- | |||||
| 49 | WP308605 | Strain Relief (2) (Replaces: 308605) |
|
$ 10.08 | |||||
| 49 | WP308605 | Strain Relief (1) (Replaces: 308604) |
|
$ 10.08 | |||||
| 50 | WP965173 | Screw, 8a X 3/8 (3) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 54 | 312602 | Frame, Control Panel |
|
- | |||||
| 55 | 308297 | Seal, Foam |
|
- | |||||
| 55 | 312788 | Panel, Control (upper) |
|
- | |||||
| 56 | 312743 | Splice Panel |
|
- | |||||
| 57 | 308297 | Seal, Foam |
|
- | |||||
| 57 | 312425 | Control Panel, Glass |
|
- | |||||
| 58 | 312603 | Bottom Cap, Control Panel |
|
- | |||||
| 59 | 348689 | Screw (2) |
|
$ 66.92 | |||||
| 60 | WP486754 | Screw, 6-32 X 1/4 (6) (Replaces: 246119) |
|
$ 6.75 | |||||
| 61 | 312248 | Screw, 8-32 X 1/2 |
|
- | |||||
| 62 | 307615 | Knob, Digital |
|
- | |||||
| 63 | 329423 | Knob, Assembly (2) |
|
- | |||||
| 63 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 64 | 309563 | Button, Push-to-start |
|
- | |||||
| 65 | 312808 | Knob, Timer (3) |
|
$ 13.92 | |||||
| 66 | 309556 | Bezel, Knob (4) |
|
- | |||||
| 68 | 308348 | Spring, Bezel (4) |
|
- | |||||
| 70 | 308346 | Knob, Surface Units (4) |
|
- | |||||
| 71 | 328709 | Knob, Thermostat |
|
- | |||||
| 72 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 72 | 328707 | Knob, Selector |
|
- |
