Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 329685 Liner, Door Appelez-nous -
1 307748 Screw, 10a X 1/2 (3) Appelez-nous -
1 311056 Screw, (4) Appelez-nous -
2 258711 Seal, Pano Glass Appelez-nous -
3 258988 Glass, Inner 30`` Appelez-nous -
4 307924 Baffle, Insulation Appelez-nous -
5 307748 Screw, 10a X 1\2 Black (4) Appelez-nous -
5 258990 Spacer, Insulation Baffle (4) Appelez-nous -
7 312783 Bumper (4) Appelez-nous -
8 310427 Frame, Door 30`` Appelez-nous -
9 309069 Glass, Outer Appelez-nous -
10 310705 Hold Down, Glass (2) Appelez-nous -
11 310428 Top, Door Frame Appelez-nous -
11 307748 Screw, 10a X 1/2 Black (2) Appelez-nous -
12 WP90296 Clip (2)   (Replaces: 90296) Special Order $ 7.07

13 308293 Seal, Foam (2) Appelez-nous -
14 310706 Clip, Glass (10) Appelez-nous -
15 311506 Clip (2) Appelez-nous -
17 WP355515 Screw, Handle (4)   (Replaces: 355515) Special Order $ 6.90

17 312721 Handle, Oven Door Appelez-nous -
18 327887 Drawer, Utility Appelez-nous -
19 309329 Protector, Drawer Side (2) Appelez-nous -
20 307748 Screw, 10a X 1/2 (2) Appelez-nous -
20 307980 Glide, Rear (2) Appelez-nous -
21 307938 Panel Drawer (harvest Gold) Appelez-nous -
21 WP488787 Panel, Drawer (screw (3))   (Replaces: 312566) Special Order $ 9.52

21 309923 Panel Drawer (black) Appelez-nous -
21 313172 Panel, Drawer (platinum) Appelez-nous -
21 313171 Panel, Drawer (toast) Appelez-nous -
21 307935 Panel Drawer (white) Appelez-nous -
21 307939 Panel, Drawer (almond) Appelez-nous -
22 307956 Handle, Drawer Appelez-nous -
22 WP912618 Screw (3)   (Replaces: 312578) Special Order $ 6.98

23 WP486255 Palnut, 8-32   (Replaces: 308542) Special Order $ 5.54

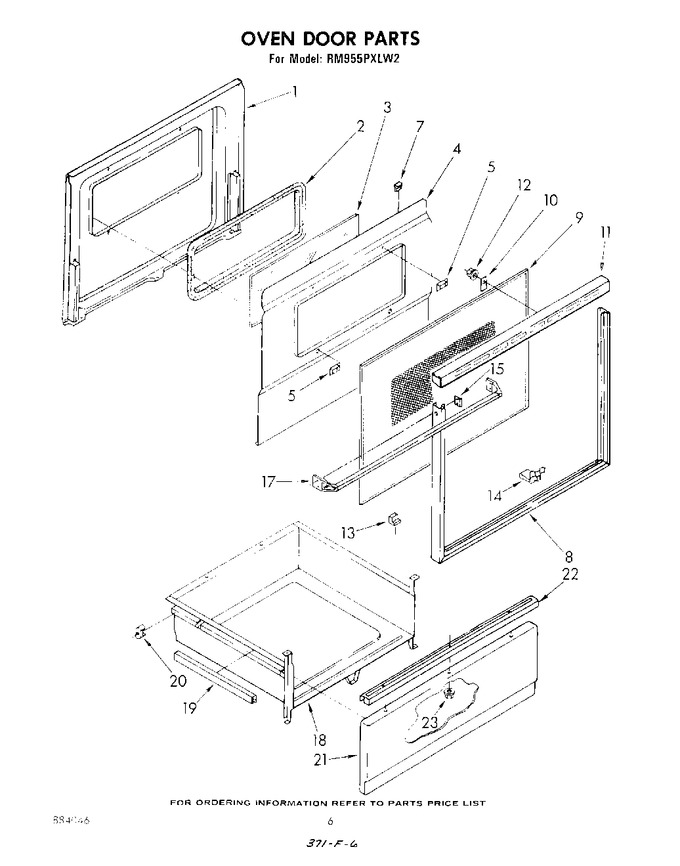

    View Diagram in Separate Window     Print Icon   Print Part List
