Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308544 Screw, 10-24 X 1/2 (6)   (Replaces: 308544) In-Stock Immediately $ 6.98

1 312810 Gusset, R.h. Appelez-nous -
1 312812 Gusset, L.h. Appelez-nous -
2 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

2 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

2 309506 Panel, Bottom Appelez-nous -
3 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

3 310803 Socket Assembly, L. H. Appelez-nous -
3 328277 Socket Assembly, R.h. Appelez-nous -
4 308894 Spring, Glass Retainer (4) Appelez-nous -
4 WP965173 Screw, 8a X 3/8 (4)   (Replaces: 246132) In-Stock Immediately $ 9.65

5 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

5 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

5 328397 Support, Frame Appelez-nous -
6 311933 Strap, Support (2) Appelez-nous -
6 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

7 WP308544 Side Panel L.h. (screw 10-24 X 1/2 (6))   (Replaces: 308544) In-Stock Immediately $ 6.98

7 313164 Side Panel L.h. (platinum) Appelez-nous -
7 313163 Side Panel L.h. (toast) Appelez-nous -
7 312265 Side Panel L.h. (almond) Appelez-nous -
7 312264 Side Panel L.h. (harvest Gold) Appelez-nous -
7 312261 Side Panel L.h. (white) Appelez-nous -
7 WP488627 Side Panel L.h. (screw, 8a X 1/2 (2) Side Panel R.h.)   (Replaces: 338156) Special Order $ 6.81

7 313162 Side Panel L.h. (platinum) Appelez-nous -
7 313161 Side Panel L.h. (toast) Appelez-nous -
7 312272 Side Panel L.h. (almond) Appelez-nous -
7 312271 Side Panel L.h. (harvest Gold) Appelez-nous -
7 312268 Side Panel L.h. (white) Appelez-nous -
8 WP965173 Top Panel (screw, 8a X 3/8 (8))   (Replaces: 246132) In-Stock Immediately $ 9.65

8 312275 Top Panel (white) Appelez-nous -
8 312278 Top Panel (harvest Gold) Appelez-nous -
8 312279 Top Panel (almond) Appelez-nous -
8 312280 Top Panel (toast) Appelez-nous -
8 312281 Top Panel (platinum) Appelez-nous -
8 308297 Top Panel (seal, Foam) Appelez-nous -
9 309552 Bushing Appelez-nous -
10 WP965173 Screw, 8a X 3/8 (2)   (Replaces: 246132) In-Stock Immediately $ 9.65

10 309629 Angle, Side Panel R.h. Appelez-nous -
11 309454 Bracket, Frame Mounting (3) Appelez-nous -
11 WP681414 Screw, 10-16 X 1/2 (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 311441 Push Switch Appelez-nous -
13 309550 Switch, Fluorescent Light Appelez-nous -
14 309455 Bracket, Switch Mounting Appelez-nous -
14 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

16 312553 Label Panel Appelez-nous -
17 308776 Brace Appelez-nous -
17 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

18 309144 Strip, Barrier Appelez-nous -
18 254217 Screw Appelez-nous -
19 309211 Clip, Tube (2) Appelez-nous -
22 328155 End Trim R.h. (toast) Appelez-nous -
22 WP681414 End Trim R.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641) In-Stock Immediately $ 7.07

22 308980 End Trim R.h. (spacer (4)) Appelez-nous -
22 328156 End Trim R.h. (platinum) Appelez-nous -
22 328154 End Trim R.h. (almond) Appelez-nous -
22 328149 End Trim R.h. (harvest Gold) Appelez-nous -
22 328146 End Trim R.h. (white) Appelez-nous -
22 328152 End Trim R.h. (platinum End Trim L.h.) Appelez-nous -
22 328151 End Trim R.h. (toast) Appelez-nous -
22 328150 End Trim R.h. (almond) Appelez-nous -
22 328144 End Trim R.h. (harvest Gold) Appelez-nous -
22 328141 End Trim R.h. (white) Appelez-nous -
22 308043 End Trim R.h. (screw, 10-12 X 7/8 (2)) Appelez-nous -
22 310304 End Trim R.h. (screw (2)) Appelez-nous -
23 308896 Trim, Glass (rear) Appelez-nous -
23 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 6.81

24 WP95292 Lamp, Fluorescent   (Replaces: 95292) In-Stock Immediately $ 121.45

25 328306 Glass Panel Appelez-nous -
26 WP488627 Screw, 8a X 1/2 (3)   (Replaces: 338156) Special Order $ 6.81

26 308897 Trim, Glass (front) Appelez-nous -
27 311953 Bracket, Control Panel Mounting Appelez-nous -
28 312237 Bracket, Chassis Mounting Appelez-nous -
28 WP681414 Screw, 10-16 X 1/2 (5)   (Replaces: 343641) In-Stock Immediately $ 7.07

29 WP339956 Seal   (Replaces: 339956) In-Stock Immediately $ 7.77

30 312599 Frame, Outer Appelez-nous -
30 WP488627 Screw, 8a X 1/2 (6)   (Replaces: 338156) Special Order $ 6.81

31 309499 Deflector, Air Appelez-nous -
32 WP90296 Clip (3)   (Replaces: 90296) Special Order $ 7.07

33 313030 Bezel, Switch (2) Appelez-nous -
35 308112 Cover, Rear Appelez-nous -
35 WP681414 Screw, 10-16 X 1/2 (3)   (Replaces: 343641) In-Stock Immediately $ 7.07

35 WP308544 Screw, 10-24 X 1/2 (2)   (Replaces: 308544) In-Stock Immediately $ 6.98

39 254217 Screw, 10a X 3/8 (4) Appelez-nous -
39 308839 Bracket, Receptacle (2) Appelez-nous -
41 307535 Blade, Fan Appelez-nous -
41 307602 Nut, Hex 6-32 (2) Appelez-nous -
42 310420 Mount, Fan Motor Appelez-nous -
42 247326 Screw, 10-24 X 1/2 (3) Appelez-nous -
44 312389 Motor Appelez-nous -
45 312340 Bracket, Fan Appelez-nous -
47 WP339956 Seal, Air Duct   (Replaces: 339956) In-Stock Immediately $ 7.77

48 254217 Screw, 10a X 3/8 Appelez-nous -
48 WP488366 Strain Relief   (Replaces: 308601) Special Order $ 10.06


    View Diagram in Separate Window     Print Icon   Print Part List

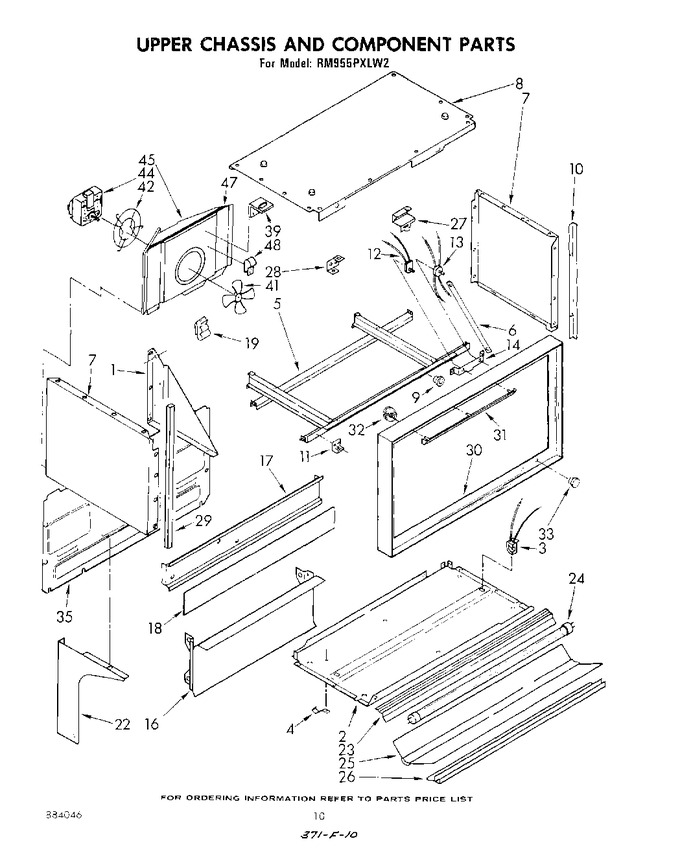

Diagram for RM955PXLW2
