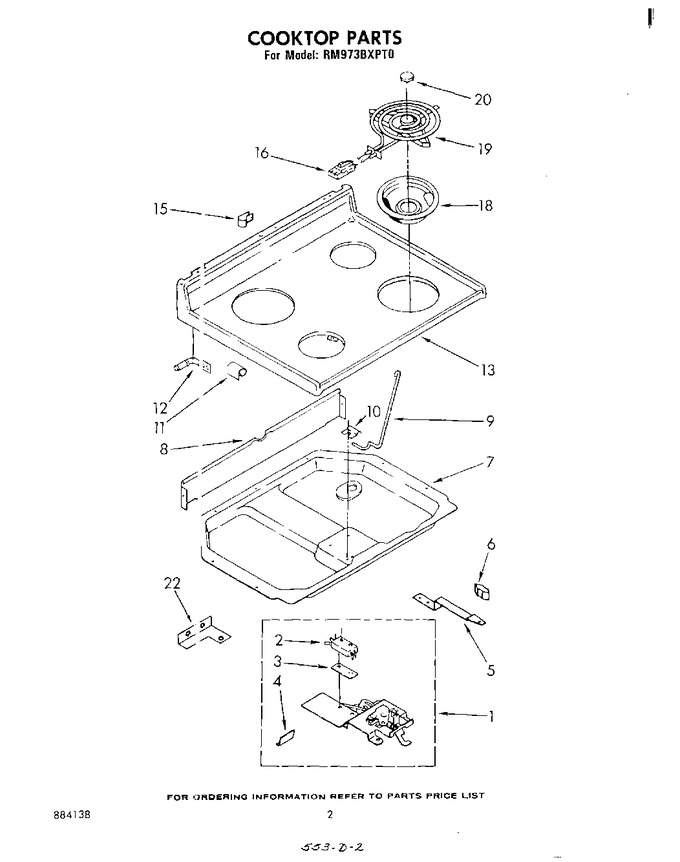

02 - Cooktop


03 - Oven


04 - Door And Drawer


05 - Oven (continued)


06 - Upper Chassis And Component


07 - Control


08 - Magnetron And Air Flow


09 - Cabinet And Stirrer , Literature


10 - Door And Latch


11 - Wiring Harness


12 - Section


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
5	307976		Handle, Latch		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	307929		Burner Box		Appelez-nous	-
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	W11693756		Screw 8a-15 X 5/8   (Replaces: 258665)			Immediately	$ 12.65
13	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
13	309922		Cooktop (chrome)		Appelez-nous	-
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
15	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
18	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
19	WPY04100165		Unit, Surface 6`` L.f. & R.r.   (Replaces: 312557)			Immediately	$ 50.62
19	WP660533		Unit, Surface 8`` R.f. & L.r. (includes Illus. 20)   (Replaces: 312560)			Immediately	$ 39.47
20	309195		Medallion (4)		Appelez-nous	-
22	307748		Screw, 10a X 1/2		Appelez-nous	-
22	312320		Shield, Insulation		Appelez-nous	-
