SELECT A DIAGRAM

02 - Cooktop


03 - Oven


04 - Door And Drawer


05 - Oven (continued)


06 - Upper Chassis And Component


07 - Control


08 - Magnetron And Air Flow

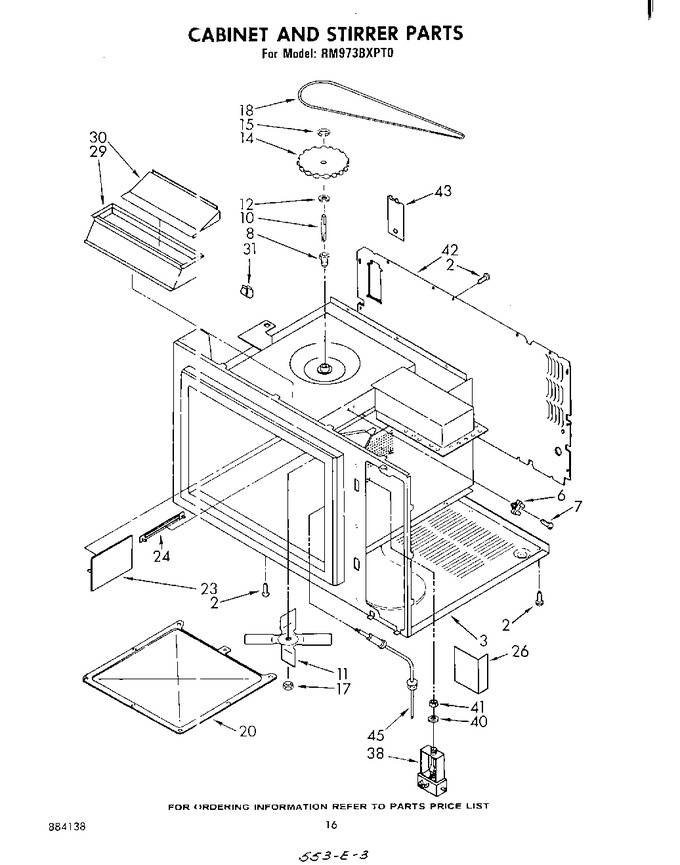

09 - Cabinet And Stirrer , Literature


10 - Door And Latch


11 - Wiring Harness


12 - Section


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP308685		Screw, 10a X 1/2 Truss Head Phillips (8)   (Replaces: 253549)			Immediately	$ 7.08
6	313440		Thermal Fuse (includes Illus.7)		Appelez-nous	-
7	312713		Screw, 8-32 X 3/8		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	309976		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
17	WP487939		Nut, Standard Hex 1/4-20   (Replaces: 311721)				$ 6.95
18	311958		Belt, Drive		Appelez-nous	-
20	313074		Stirrer Cover		Appelez-nous	-
23	307516		Cover		Appelez-nous	-
24	309437		Cover, Rivet		Appelez-nous	-
26	312577		Shield, Exhaust Probe		Appelez-nous	-
29	309444		Baffle, Air Exhaust		Appelez-nous	-
30	311702		Air Deflector		Appelez-nous	-
31	311149		Clip, Air Cover (3)		Appelez-nous	-
38	313458		Jack, Probe		Appelez-nous	-
40	313105		Washer Probe		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
42	WP681414		Screw, 10-16 X 1\2 (14)   (Replaces: 343641)			Immediately	$ 7.07
42	312257		Cover, Rear		Appelez-nous	-
43	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
43	312379		Cover, Light		Appelez-nous	-
45	350930		White   (Replaces: 799343)			Immediately	$ 34.39
45	261900		Citrine White (5 Oz.)				$ 51.34
45	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
45	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
45	261891		Harvest Gold		Appelez-nous	-
45	978883		Almond		Appelez-nous	-
45	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
45	285368		Platinum		Appelez-nous	-
45	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
45	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
45	261582		Grease		Appelez-nous	-
45	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
45	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
45	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
45	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
45	242985		Rotisserie Kit (rck 81)		Appelez-nous	-
45	310878		Rack, Meat (micro)		Appelez-nous	-
45	307677		Browning Tray (micro)		Appelez-nous	-
45	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
45	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
45	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
45	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
45	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
45	313044		Probe, Temperature		Appelez-nous	-
45	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
45	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
45	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
45	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
45	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
45	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
45	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
45	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
45	242831		Wire (14 Ga. 200 C Red)				$ 342.23
45	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
45	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
45	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
45	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
45	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
45	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
45	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
45	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
45	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
45	350942		Primer (white)   (Replaces: 206922)				$ 80.69
45	206925		Leveler, Enamel		Appelez-nous	-
45	261890		Harvest Gold		Appelez-nous	-
45	285365		Toast		Appelez-nous	-
45	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
45	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
	LIT312880		Guide, Use & Care (microwave)		Appelez-nous	-
	LIT884138		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311895		Cookbook (microwave)		Appelez-nous	-
	LIT313355		Tech Sheet		Appelez-nous	-
	LIT313480		Installation Instructions		Appelez-nous	-
	LIT312877		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
