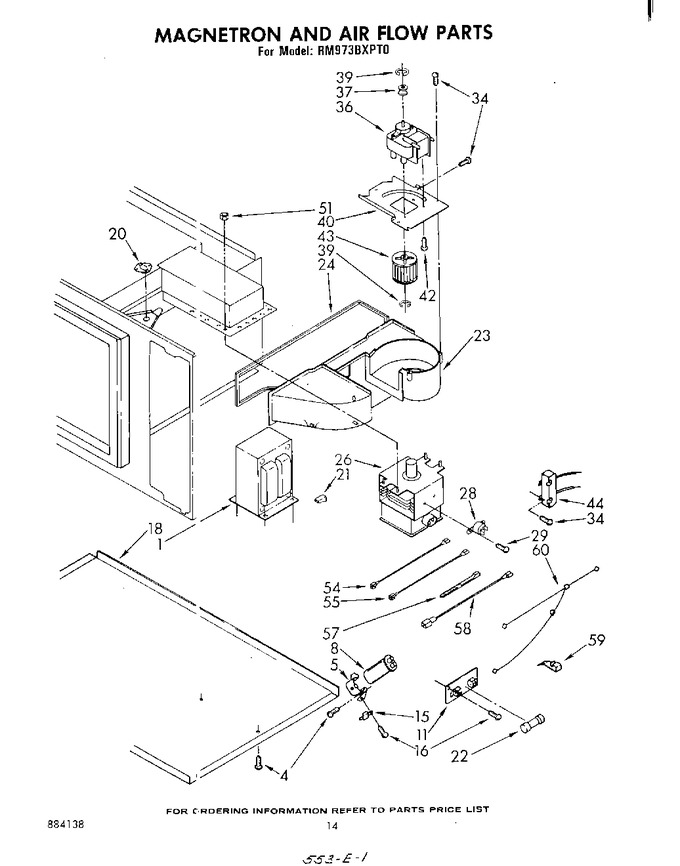

08 - Magnetron And Air Flow


09 - Cabinet And Stirrer , Literature


10 - Door And Latch


11 - Wiring Harness


12 - Section


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	661056		Transformer		Appelez-nous	-
1	312848		Transformer (alt.)		Appelez-nous	-
1	312849		Transformer (alt.)		Appelez-nous	-
4	312185		Screw, 10-32 X 1/2 Hex Washer W/ground Ring (10)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	312631		Capacitor (alt.)		Appelez-nous	-
8	312632		Capacitor (alt.)		Appelez-nous	-
8	661004		Capacitor		Appelez-nous	-
11	309795		Block, Fuse		Appelez-nous	-
15	312482		Rectifier, High Voltage		Appelez-nous	-
16	312713		Screw, 8-32 X 3/8		Appelez-nous	-
20	312713		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
20	311719		Thermostat		Appelez-nous	-
21	312813		Housing Receptacle		Appelez-nous	-
22	WPW10017410		Fuse (20 Amp)   (Replaces: 309796)			Immediately	$ 19.05
23	312614		Air Duct (horizontal)		Appelez-nous	-
24	WP339956		Seal, Air Duct   (Replaces: 311956)			Immediately	$ 7.77
26	311992		Magnetron (alt.)		Appelez-nous	-
26	313034		Magnetron (alt.)		Appelez-nous	-
26	311995		Magnetron (alt.)		Appelez-nous	-
26	311994		Magnetron (alt.)		Appelez-nous	-
26	660595		Magnetron		Appelez-nous	-
26	311993		Magnetron (alt.)		Appelez-nous	-
28	661165		Thermal Protector		Appelez-nous	-
28	312800		Thermal Protector (alt.)		Appelez-nous	-
28	313521		Thermal Protector (alt.)		Appelez-nous	-
29	312782		Screw, 6a X 3/8 (2)		Appelez-nous	-
34	346893		Screw, 11-16 X 1/2 Double Load Space Thread (5)		Appelez-nous	-
36	661000		Motor		Appelez-nous	-
36	312478		Motor (alt.)		Appelez-nous	-
36	311998		Motor (alt.)		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring (2)		Appelez-nous	-
40	311916		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw, 6 X 8/32 Round Head Cross Recess (4)   (Replaces: 311865)				$ 6.61
43	311920		Wheel, Blower		Appelez-nous	-
44	661005		Reed Relay		Appelez-nous	-
44	312784		Reed Relay (alt.)		Appelez-nous	-
44	312640		Reed Relay (alt.)		Appelez-nous	-
51	310300		Flange Nut (4)		Appelez-nous	-
54	313129		Jumper, High Voltage (black 6-5/16``)		Appelez-nous	-
55	313130		Jumper, High Voltage Black 6-5/16``		Appelez-nous	-
57	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
58	313113		High Voltage Lead, Gray (7-11/16``) (2)		Appelez-nous	-
59	312763		Clip, Harness		Appelez-nous	-
60	166681		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
60	312764		Cable, Support		Appelez-nous	-
	346893		Screw, 11-16 X 1/2 (2)		Appelez-nous	-
