SELECT A DIAGRAM

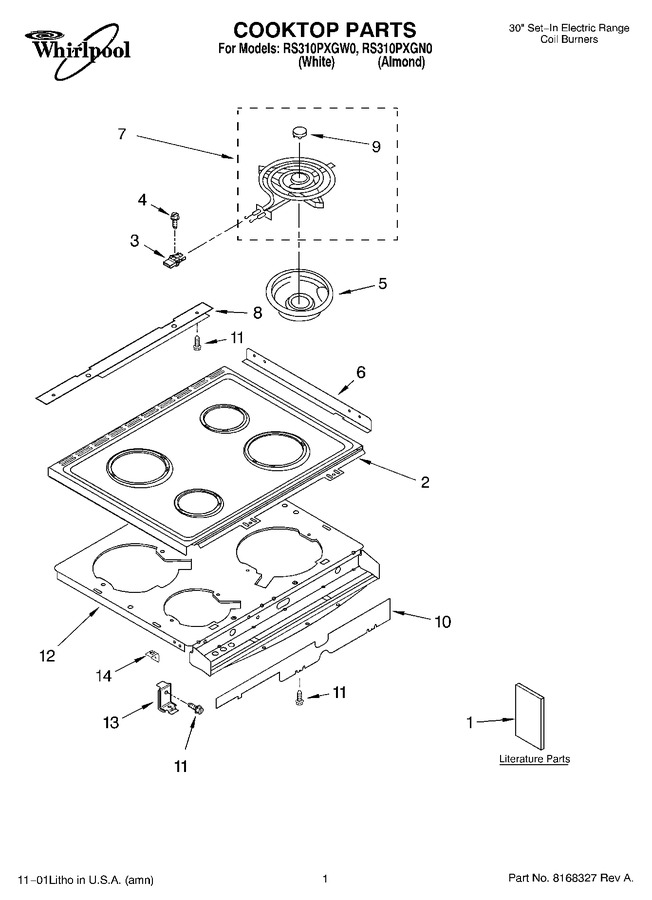

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9753313		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9752913		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753426		Literature Parts (anti-tip Template)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9753452		Literature Parts (wiring Diagram)		Appelez-nous	-
2	9781892GW		Cooktop, Coil (white)		Appelez-nous	-
2	9752882GT		Cooktop, Coil (almond)		Appelez-nous	-
3	9781324		Receptacle, Element		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
5	W10196405RW		Ring-bowl 8``   (Replaces: 3150247)			Immediately	$ 18.70
5	WPW10196406		Ring-bowl 6``   (Replaces: 3150246)			Immediately	$ 12.05
6	9752890		Trim, Side		Appelez-nous	-
7	3191025		Element, Surface (coil, 6`` Lr-rf)		Appelez-nous	-
7	3191026		Element, Surface (coil, 6`` Lf-rr)		Appelez-nous	-
8	9752889		Trim, Rear		Appelez-nous	-
9	4211952		Medallion		Appelez-nous	-
10	9752884		Shield, Cover		Appelez-nous	-
11	9780265		Screw		Appelez-nous	-
12	9752883		Support, Cooktop		Appelez-nous	-
13	9751629		Bracket, Pivot		Appelez-nous	-
14	9782000		Bracket, Rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
