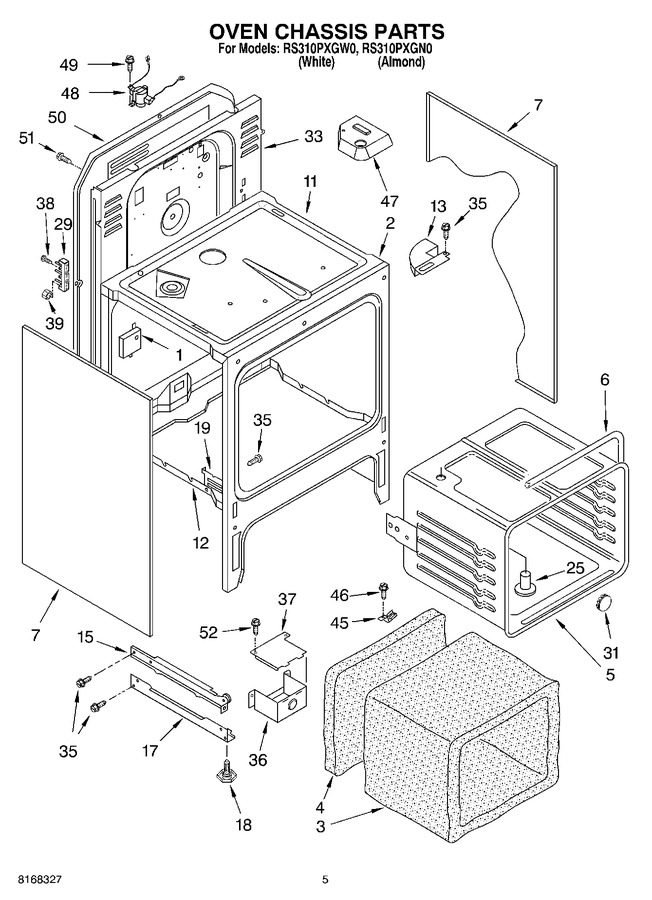

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752868		Vent Box, Oven		Appelez-nous	-
2	9750477GM		Chassis, Front		Appelez-nous	-
3	9754001		Insulation, Wrap		Appelez-nous	-
4	9754010		Insulation, Rear		Appelez-nous	-
5	9781294GM		Oven Liner		Appelez-nous	-
6	9750691		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven , Side Panel (white, L Or R)		Appelez-nous	-
7	9781907PT		Oven , Side Panel (almond, L Or R)		Appelez-nous	-
11	9752919		Burner Box		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Receiver, Hinge (r Or L)		Appelez-nous	-
25	9750391		Vent Tube		Appelez-nous	-
29	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
31	9780578		Plug, Button		Appelez-nous	-
33	9751051		Back, Chassis		Appelez-nous	-
35	9780265		Screw		Appelez-nous	-
36	9752344		Box, Terminal		Appelez-nous	-
37	9752345		Cover, Term. Box		Appelez-nous	-
38	98884		Screw		Appelez-nous	-
39	WP112432		Nut   (Replaces: 112432)				$ 7.16
45	3169573		Strap, Ground		Appelez-nous	-
45	313660		Clip		Appelez-nous	-
46	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 7.07
47	9782330		Block, Balance		Appelez-nous	-
48	3189942		Thermostat, Safety				$ 80.85
49	9780271		Screw		Appelez-nous	-
50	9751353		Cover, Back		Appelez-nous	-
51	423247		Screw		Appelez-nous	-
52	9780272		Screw		Appelez-nous	-
