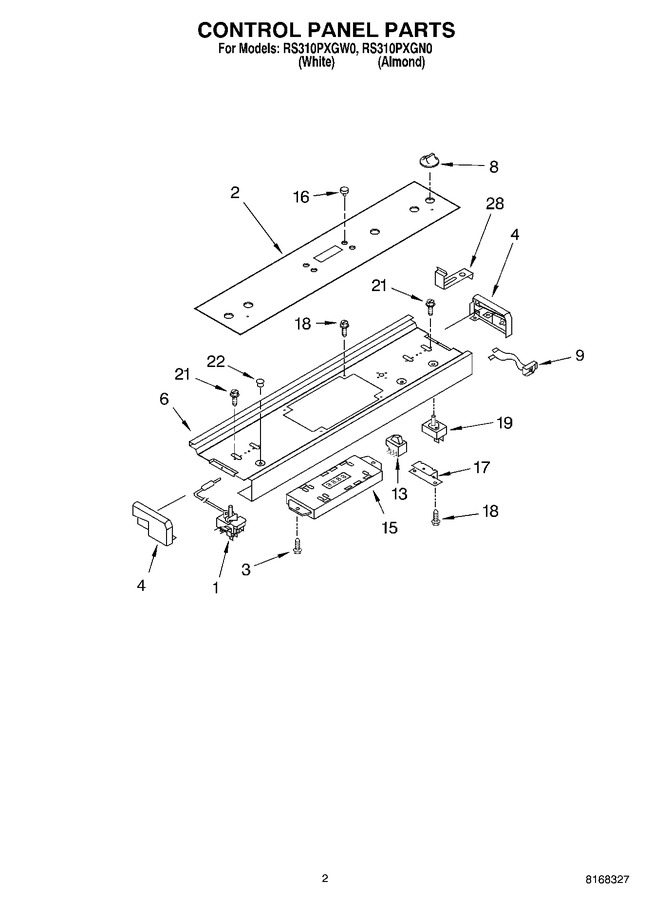

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752911		Thermostat		Appelez-nous	-
2	9752900CB		Console-glass (control Panel)		Appelez-nous	-
3	9780265		Screw, 10 X 3/8		Appelez-nous	-
4	9781888FB		End Cap (right)		Appelez-nous	-
4	9781889FB		End Cap (left)		Appelez-nous	-
6	9752898PB		Panel, Control (black)		Appelez-nous	-
8	9752405FB		Knobs, Control (5)				$ 17.20
9	9780798		Light, Indicator		Appelez-nous	-
13	9780683		Switch, Oven Light		Appelez-nous	-
15	9781714		Oven Control (timer Assembly)		Appelez-nous	-
16	9781954FB		Button, Timer (4)				$ 14.66
17	9753304		Bracket, Timer (2)		Appelez-nous	-
18	9780265		Screw, (4)		Appelez-nous	-
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 88.82
19	WP9750643		Infinite Switch (1400w (2))   (Replaces: 9750643)			Immediately	$ 130.61
20	WP3400882		Screw (8)   (Replaces: 3400816)			Immediately	$ 6.47
21	3400853		Screw		Appelez-nous	-
22	9780799		Lens, Red		Appelez-nous	-
28	9752906		Clip, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
