02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

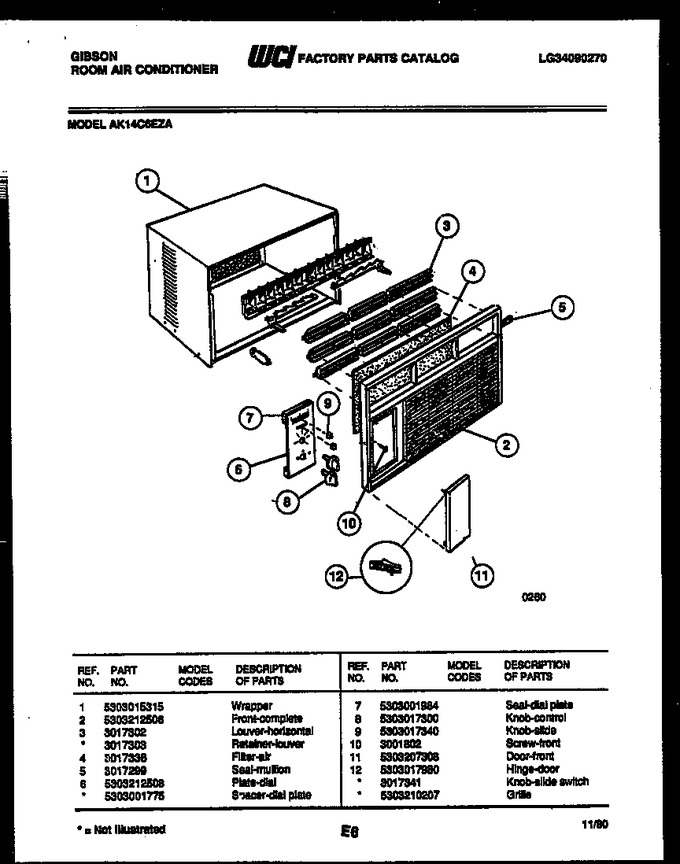

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303212506 | Front-complete |
|
- | |||||
| 3 | 3017302 | Louver-horizontal |
|
- | |||||
| 4 | 3017336 | Filter-air |
|
- | |||||
| 5 | 3017299 | Seal Mullion |
|
- | |||||
| 6 | 5303212508 | Plate-dial |
|
- | |||||
| 7 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 8 | 5303017300 | Knob-control |
|
- | |||||
| 9 | 5303017340 | Knob - Slide |
|
- | |||||
| 10 | 3001802 | Screw-front |
|
- | |||||
| 11 | 5303207308 | Door-front |
|
- | |||||
| 12 | 5303017980 | Hinge - Door |
|
- | |||||
| *32441 | 3017341 | Knob - Slide, Switch |
|
- | |||||
| *32442 | 5303210207 | Grille |
|
- | |||||
| 3A | 3017303 | Retainer-louver (non-illustrated) |
|
- | |||||
| 6A | 5303001775 | Spacer-dial Plate (non-illustrated) |
|
- |
