02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

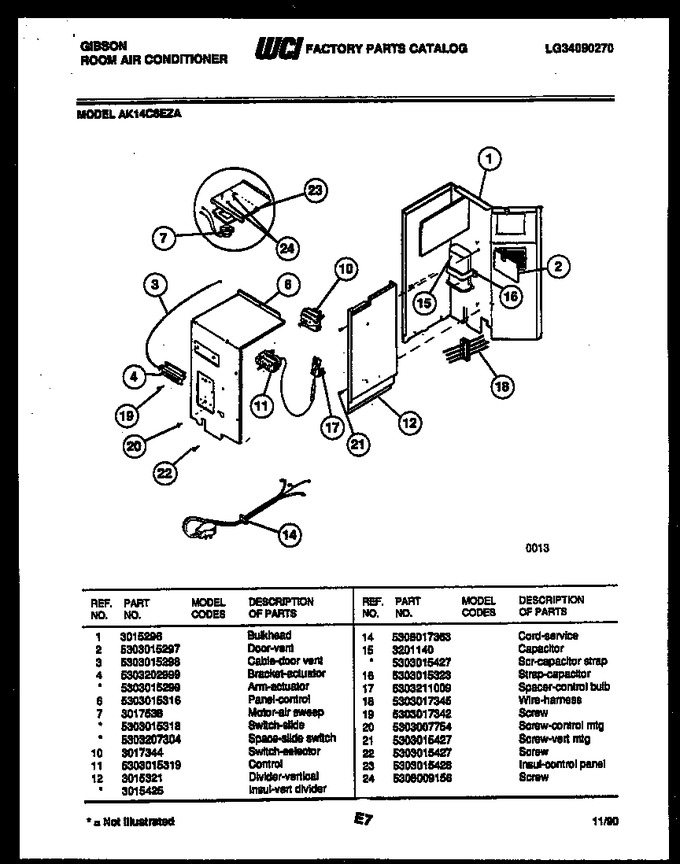

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable-door Vent |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 6 | 5303015316 | Panel-control |
|
- | |||||
| 7 | 3017538 | Motor - Air Sweep |
|
- | |||||
| 10 | 3017344 | Switch - Selector |
|
$ 166.42 | |||||
| 11 | 5303015319 | Control |
|
- | |||||
| 12 | 3015321 | Divider - Vertical |
|
- | |||||
| 14 | 5308017363 | Cord-service |
|
- | |||||
| 15 | 3201140 | Capacitor |
|
Immediately | $ 19.08 | ||||
| 16 | 5303015323 | Strap-capacitor |
|
- | |||||
| 17 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 18 | 5303017345 | Wire Harness |
|
- | |||||
| 19 | 5303017342 | Screw |
|
- | |||||
| 20 | 5303007754 | Screw-control Mtg. |
|
- | |||||
| 21 | 5303015427 | Screw-vert Mtg |
|
- | |||||
| 22 | 5303015427 | Screw |
|
- | |||||
| 23 | 5303015428 | Insul-control Panel |
|
- | |||||
| 24 | 5308009156 | Screw |
|
- | |||||
| 12A | 3015425 | Insul-vert. Divider (non-illustrated) |
|
- | |||||
| 15A | 5303015427 | Scr-capacitor Strap (non-illustrated) |
|
- | |||||
| 4A | 5303015299 | Arm-actuator (non-illustrated) |
|
- | |||||
| 7A | 5303015318 | Switch-slide (non-illustrated) |
|
- | |||||
| 7B | 5303207304 | Space-slide Switch (non-illustrated) |
|
- |
