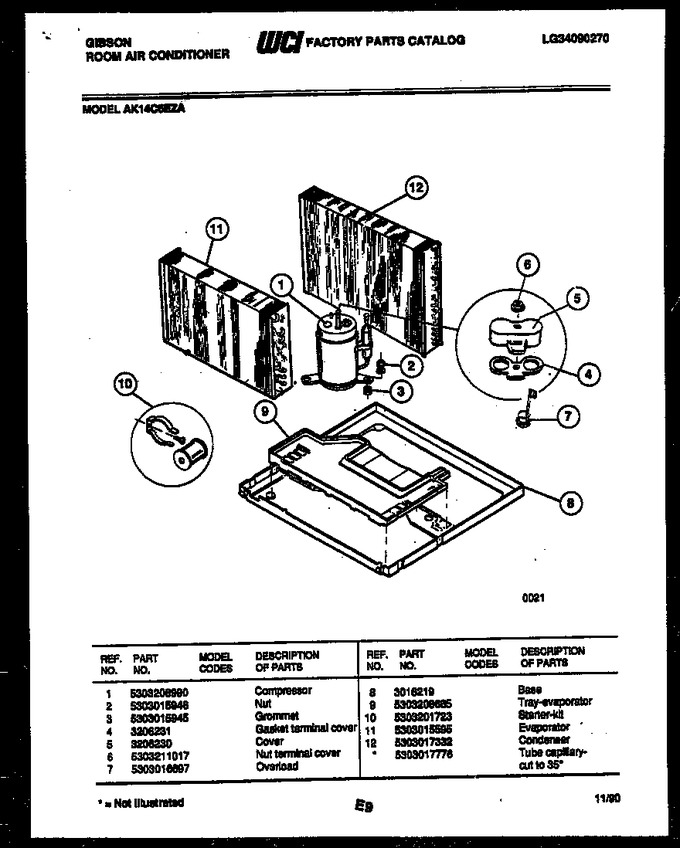

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - System Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208990 | Compressor |
|
- | |||||
| 2 | 5303015946 | Nut |
|
- | |||||
| 3 | 5303015945 | Grommet |
|
- | |||||
| 4 | 3206231 | Gasket Terminal Cover |
|
- | |||||
| 5 | 3206230 | Cover |
|
- | |||||
| 6 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 7 | 5303016697 | Overload |
|
- | |||||
| 8 | 3016219 | Base |
|
- | |||||
| 9 | 5303208665 | Tray-evaporator |
|
- | |||||
| 10 | 5303201723 | Starter Kit |
|
- | |||||
| 11 | 5303015595 | Evaporator |
|
- | |||||
| 12 | 5303017332 | Condenser |
|
- | |||||
| *32455 | 5303017776 | Tube-capillary (cut To 35``) |
|
- |
