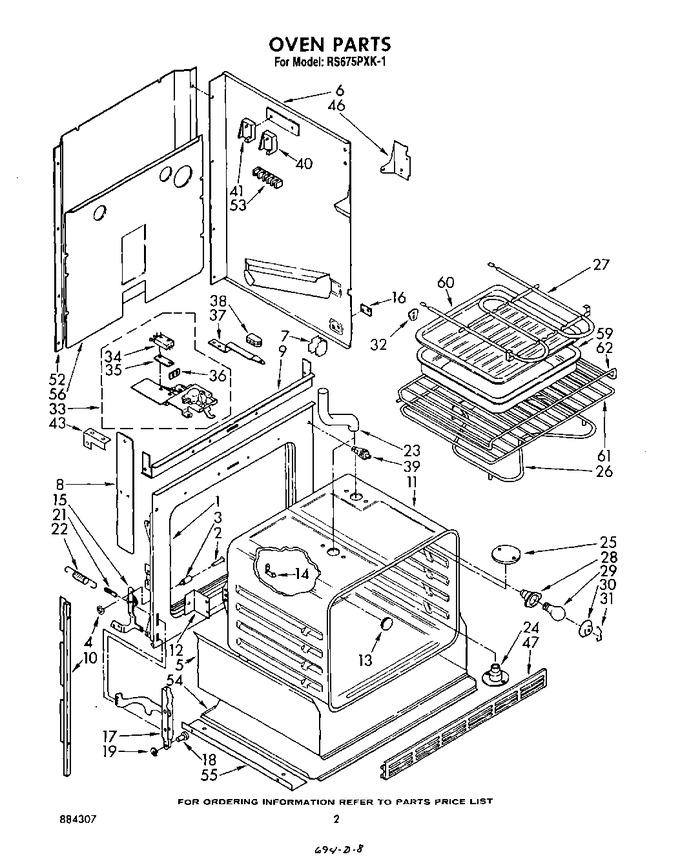

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 328747 | Frame, Front |
|
- | |||||
| 2 | 307985 | Pin, Hinge Ear (2) |
|
$ 29.54 | |||||
| 3 | 309111 | Snubber, Door (2) |
|
- | |||||
| 4 | 308306 | Pushnut (2) |
|
- | |||||
| 5 | 310770 | Insulation Tray |
|
- | |||||
| 6 | 311009 | Side Wrapper (left Side) |
|
- | |||||
| 6 | 311006 | Side Wrapper (right Side) |
|
- | |||||
| 6 | WP488729 | Screw, 8 - 18 X .5 (14) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 7 | WP488729 | Screw, 8-18 X .50 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 7 | 311774 | Support, Side Wrapper (4) |
|
- | |||||
| 8 | 308536 | Screw, 6a X 1 1/4 (2) |
|
- | |||||
| 8 | 311256 | Insulation Baffle (2) |
|
- | |||||
| 9 | WP488729 | Screw, 8-18 X .50 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 9 | 310693 | Baffle, Top Insulation |
|
- | |||||
| 10 | 310689 | Side Trim (r.h.) |
|
- | |||||
| 10 | 310685 | Side Trim L.h. |
|
- | |||||
| 10 | WP488729 | Screw, 8 - 18 X .50 (8) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 11 | 328756 | Oven (30`` Pyro) |
|
- | |||||
| 11 | 311056 | Screw (3) |
|
- | |||||
| 12 | 310713 | Bracket, Oven Mounting (2) |
|
- | |||||
| 12 | 246127 | Screw, 10-32 X 5/8 (6) |
|
- | |||||
| 13 | 257314 | Plug Button |
|
- | |||||
| 14 | 98005642 | Clip, Therm Bulb (2) (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 15 | 328802 | Hinge Ear, L.h. |
|
- | |||||
| 15 | 328801 | Hinge Ear, R.h. |
|
- | |||||
| 16 | 310659 | Plate, Side Panel (2) |
|
- | |||||
| 16 | WP308544 | Screw, 10-24 X 1/2 (4) (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 17 | 329713 | Channel Arm (2) |
|
- | |||||
| 18 | WP307986 | Pin, Hinge (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 19 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 21 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 22 | WP308126 | Spring, Oven Door (2) (Replaces: 308126) |
|
$ 38.15 | |||||
| 23 | 310835 | Tube, Vent Extension |
|
- | |||||
| 23 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 24 | 310839 | Eliminator, Smoke |
|
- | |||||
| 24 | WP488729 | Screw, 8 - 18 X .50 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 25 | WP488729 | Screw, 8 - 18 X .50 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 25 | 310662 | Plate, Cover |
|
- | |||||
| 26 | WP308180 | Unit, Bake (alt.) (Replaces: 308180) |
|
$ 96.92 | |||||
| 26 | WP308180 | Unit, Bake (alt.) (Replaces: 313827) |
|
$ 96.92 | |||||
| 26 | WP308180 | Unit, Bake (Replaces: 661170) |
|
$ 96.92 | |||||
| 27 | WP660579 | Unit, Broil (alt.) (includes Illus. 32) (Replaces: 311713) |
|
$ 140.80 | |||||
| 27 | WP660579 | Unit, Broil (alt.) (Replaces: 311714) |
|
$ 140.80 | |||||
| 27 | WP660579 | Unit, Broil (Replaces: 660579) |
|
$ 140.80 | |||||
| 28 | 660556 | Socket, Oven Light |
|
- | |||||
| 28 | 307856 | Socket, Oven Light (alt.) |
|
- | |||||
| 28 | 310208 | Socket, Oven Light (alt.) |
|
Immediately | $ 36.34 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | 308039 | Cover, Light |
|
- | |||||
| 31 | 308038 | Retainer, Light |
|
- | |||||
| 32 | 311982 | Coverplate |
|
- | |||||
| 33 | 328585 | Latch Assembly |
|
- | |||||
| 33 | 311056 | Screw (2) |
|
- | |||||
| 33 | WP488729 | Screw, 8 - 18 X .50 (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 34 | 98106 | Screw (2) |
|
- | |||||
| 34 | 308185 | Safety Switch |
|
- | |||||
| 35 | 309245 | Insulator, Switch |
|
- | |||||
| 36 | 309258 | Screw, 6 X 3/8b (2) |
|
- | |||||
| 36 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 36 | 313035 | Terminal, Shield |
|
- | |||||
| 37 | 308422 | Screw, 10-24 X 1/2 (2) |
|
- | |||||
| 37 | 310825 | Latch, Handle |
|
- | |||||
| 38 | 311253 | Knob, Latch Handle |
|
- | |||||
| 38 | 246135 | Screw, 8 X 5/16 |
|
- | |||||
| 39 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 40 | 314209 | Switch, Percentage Broil |
|
- | |||||
| 41 | 314211 | Switch, Percentage Bake |
|
- | |||||
| 41 | 314215 | Screw, No.6 |
|
- | |||||
| 43 | 307748 | Screw, 10a X 1/2 |
|
- | |||||
| 43 | 312320 | Shield, Insulation |
|
- | |||||
| 46 | 310714 | Cover, Side (left Side) |
|
- | |||||
| 46 | WP488729 | Cover Side (screw, 8 18 X .50 (6)) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 46 | 310715 | Cover, Side (right Side) |
|
- | |||||
| 47 | 309029 | Screw, 8-15 X 1/2 (3) |
|
- | |||||
| 47 | 310668 | Bottom Grill |
|
$ 556.11 | |||||
| 52 | WP488729 | Screw, 8 - 18 X .50 (6) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 52 | 310459 | Back Panel |
|
- | |||||
| 53 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 53 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 53 | 308043 | Screw, 10-12 X 7/8 (2) |
|
- | |||||
| 54 | 310458 | Cover, Bottom |
|
- | |||||
| 55 | WP488729 | Screw, 8-18 X .50 (4) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 55 | 311592 | Angle, Support (2) |
|
- | |||||
| 56 | WP488729 | Screw, 8 - 18 X .50 (12) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 56 | 311012 | Cover, Rear |
|
- | |||||
| 59 | 4396923 | Pan, Broiler (Replaces: 310976) |
|
Immediately | $ 52.04 | ||||
| 60 | 4396923 | Grid, Broiler Pan (Replaces: 258171) |
|
Immediately | $ 52.04 | ||||
| 61 | 308173 | Rack, Oven |
|
- | |||||
| 62 | 308172 | Rack, Oven (offset) |
|
- | |||||
| 246127 | Screw, 10-32 X 5/8 (4) |
|
- | ||||||
| 308043 | Screw, 10-12 X 7/8 (2) |
|
- |
