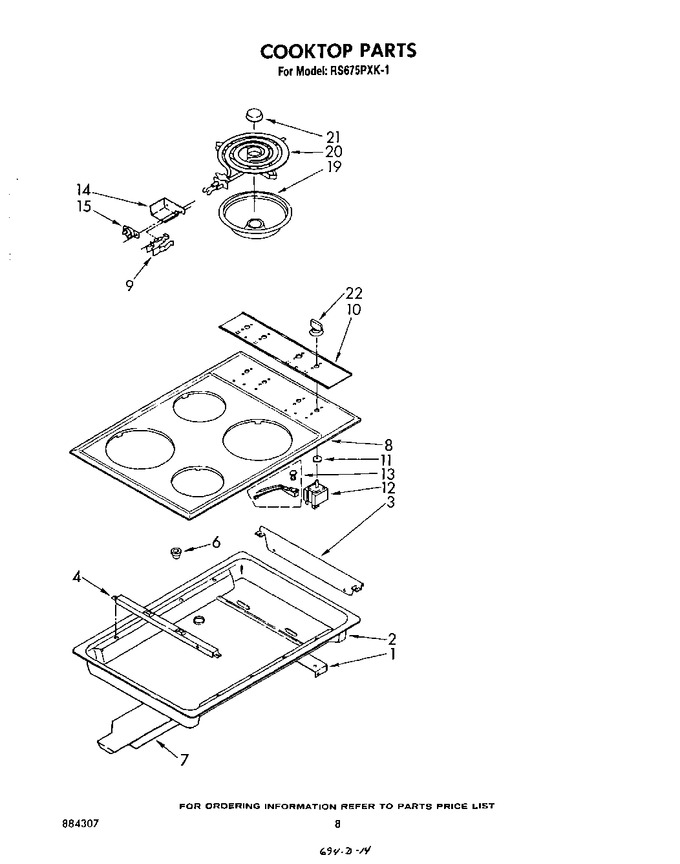

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw, 8 - 18 X .50 (6)   (Replaces: 313638)			Immediately	$ 7.01
1	310718		Support, Burner Box (2)		Appelez-nous	-
2	WP488729		Screw, 8-18 X .50 (4)   (Replaces: 313638)			Immediately	$ 7.01
2	311019		Burner Box		Appelez-nous	-
3	WP488729		Screw, 8 - 18 X .50 (2)   (Replaces: 313638)			Immediately	$ 7.01
3	310716		Shield, Switch		Appelez-nous	-
4	WP488729		Screw, 8-18 X .50 (4)   (Replaces: 313638)			Immediately	$ 7.01
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	WP488729		Screw, 8 - 18 X .50 (3)   (Replaces: 313638)			Immediately	$ 7.01
7	3147565		Cover, Top Rear		Appelez-nous	-
8	312318		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
8	166681		Screw, 10-32 X 5/16 (2)		Appelez-nous	-
8	307492		Cooktop, Brushed Chrome		Appelez-nous	-
9	330031		Clip, Receptacle (4)   (Replaces: 312606)			Immediately	$ 14.48
9	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
10	313132		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	W10900107		Switch, Infinite (4) (use W/6`` Surface Unit (2))   (Replaces: 311837)			Immediately	$ 51.87
12	WP486579		Switch, Infinite (4) (screw, 8-32 X 5/16 (8))   (Replaces: 311865)				$ 6.61
12	W10900107		Switch, Infinite (4) (use W/8`` Surface Unit (2))   (Replaces: 311836)			Immediately	$ 51.87
13	313461		Indicator Light (lens, No.313602)		Appelez-nous	-
14	3147830		Bracket, Sensor		Appelez-nous	-
15	WP313808		Screw, 6-32 X 1/4 (3)   (Replaces: 313808)				$ 6.84
15	3147833		Thermostat				$ 0.01
19	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
19	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
20	WP660532		Unit, Surface (6``) (alt.)   (Replaces: 313964)			Immediately	$ 36.90
20	WP660532		Unit, Surface (6``)   (Replaces: 660532)			Immediately	$ 36.90
20	WP660532		Unit, Surface (6``) (alt.)   (Replaces: 309334)			Immediately	$ 36.90
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	WP330190		Knob, Control (4)   (Replaces: 330190)				$ 38.10
	WP660533		(alt.) (includes Illus. 21)   (Replaces: 309340)			Immediately	$ 39.47
	WP660533		(alt.)   (Replaces: 313963)			Immediately	$ 39.47
	WP660533		Unit, Surface (8``)   (Replaces: 660533)			Immediately	$ 39.47

    View Diagram in Separate Window       Print Part List
