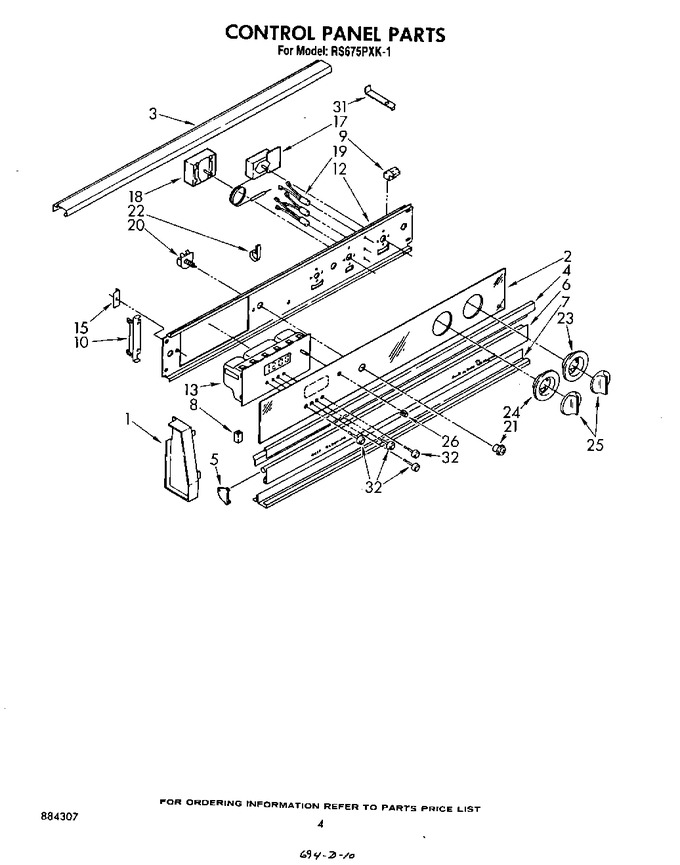

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 308504 | Screw (2) |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | 310826 | End Cap (l.h.) |
|
- | |||||
| 1 | 310827 | End Cap (r.h.) |
|
- | |||||
| 2 | 313947 | Control Panel, Glass |
|
- | |||||
| 3 | 310819 | Rail, Top |
|
- | |||||
| 4 | 311189 | Trim, Center |
|
- | |||||
| 5 | 310832 | End Trim, Vent (left Side) |
|
- | |||||
| 5 | 310833 | End Trim, Vent (right Side) |
|
- | |||||
| 6 | 312447 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (6) |
|
- | |||||
| 7 | 311190 | Trim, Bottom |
|
- | |||||
| 8 | 310842 | Channel, Rubber (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 12 | 330500 | Bracket, Control |
|
- | |||||
| 13 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 13 | 314128 | Timer, Orbitron (included No.14) |
|
- | |||||
| 15 | 313864 | Bracket, Timer (2) |
|
- | |||||
| 17 | 313856 | Thermostat, Oven |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 18 | 310006 | Selector Switch |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 23 | 311066 | Escutcheon, Thermostat |
|
$ 25.00 | |||||
| 24 | 254225 | Screw 8bt X 1/4 (2) |
|
- | |||||
| 24 | WP311068 | Escutcheon, Selector Switch (Replaces: 311068) |
|
$ 49.73 | |||||
| 25 | WP3150371 | Knob, Control (2) (Replaces: 310834) |
|
$ 19.40 | |||||
| 26 | 313523 | Knob, Timer (1) |
|
$ 13.66 | |||||
| 31 | 312752 | Support, Rail |
|
- | |||||
| 31 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 32 | 313958 | Knob-bit Generator (4) |
|
- |
