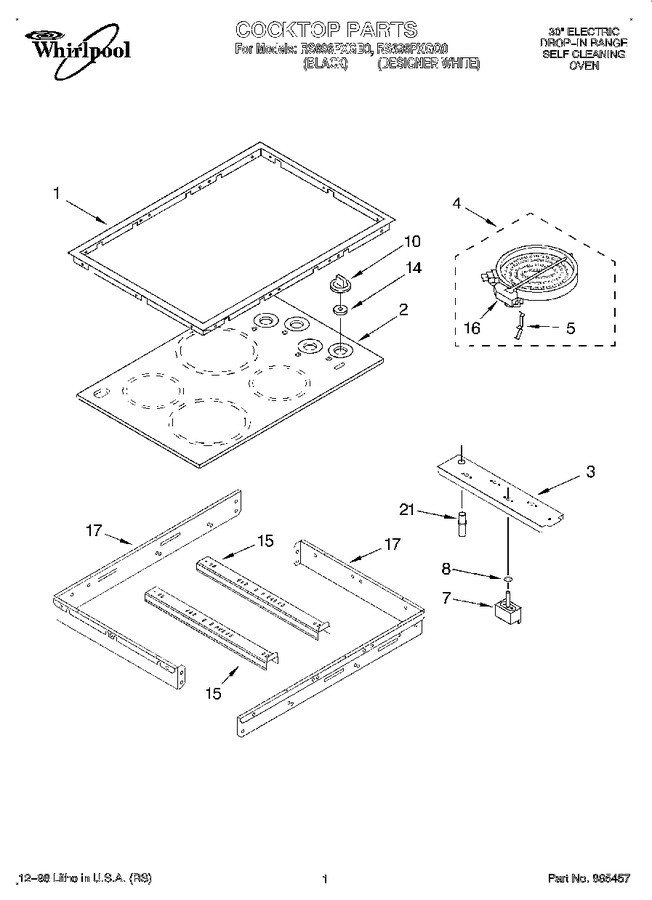

SELECT A DIAGRAM

01 - Cooktop


02 - Oven


03 - Control Panel, Literature


04 - Oven Door


05 - Top Venting


06 - Internal Oven, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4449979		Trim Ring, Cooktop (white)		Appelez-nous	-
1	4168863		Trim Ring, Cooktop (screw (10))		Appelez-nous	-
1	4449978		Trim Ring, Cooktop (black)		Appelez-nous	-
2	3191188		Cooktop, Glass (black)		Appelez-nous	-
2	3191189		Cooktop, Glass (white)		Appelez-nous	-
3	3191310		Bracket, Switch Mounting		Appelez-nous	-
4	W10823693		Element, Surface (1800w Rr)   (Replaces: 3191982)			Immediately	$ 205.87
4	3191983		Element, Surface (2500w Lf)		Appelez-nous	-
4	3191984		Element, Surface (1200w Rf-lr)		Appelez-nous	-
5	3191791		Spring, Locator		Appelez-nous	-
5	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
7	WP4454541		Switch, Infinite (2500w Lf (red Shaft))   (Replaces: 4454541)				$ 149.46
7	WP3191049		Switch, Infinite (1200w Rr-lr (silver Shaft))   (Replaces: 3191049)				$ 150.25
7	WP3191050		Switch, Infinite (1800w Rr (yellow Shaft))   (Replaces: 3191050)			Immediately	$ 149.72
7	WP486579		Switch, Infinite (screw)   (Replaces: 311865)				$ 6.61
8	3183956		Seal, Switch Cover				$ 41.81
10	WP3196231		Knob, Control (4) (black)   (Replaces: 3196231)			Immediately	$ 18.86
10	3196232		Knob, Control (4) (white)				$ 16.71
14	3182435		Seal, Switch (4)		Appelez-nous	-
15	3191515		Bracket, Support Element		Appelez-nous	-
16	3191991		Limiter, Temperature (use W/3191983 Element)		Appelez-nous	-
16	3191990		Limiter, Temperature (use W/3191984 Element)		Appelez-nous	-
16	3191988		Limiter, Temperature (use W/3191982 Element)		Appelez-nous	-
17	3192452		Frame, Cooktop (2)		Appelez-nous	-
21	3191952		Lamp, Indicator		Appelez-nous	-
21	3191953		Bumper, Rubber		Appelez-nous	-
21	9750835		Bumper, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
