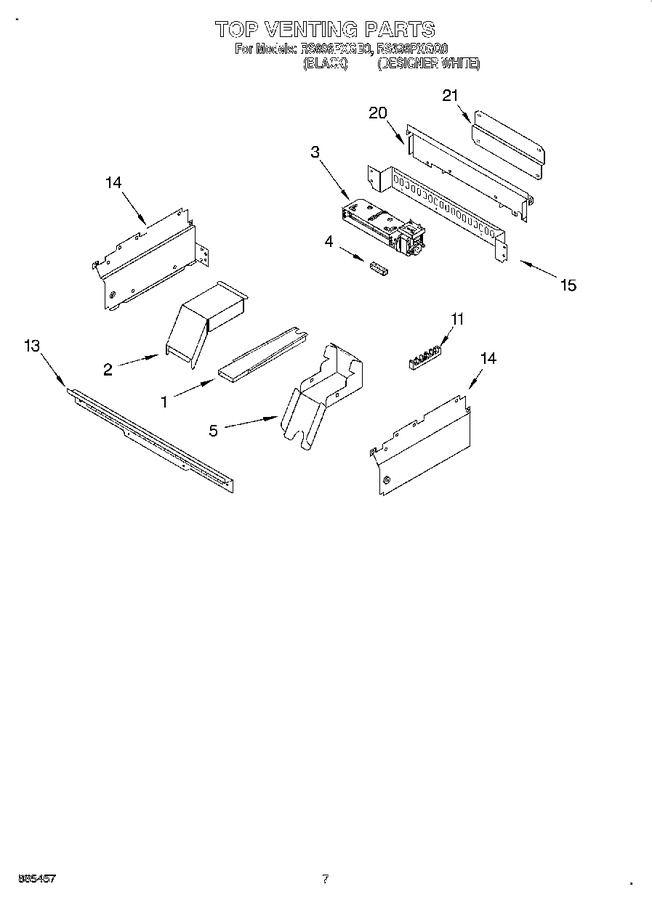

05 - Top Venting
06 - Internal Oven, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 1 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 2 | 4455178 | Elbow, Vent-top (Replaces: 4451438) |
|
$ 13.30 | |||||
| 3 | WPW10016550 | Blower (Replaces: 6610168) |
|
Immediately | $ 255.27 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455177 | Elbow, Vent Bottom (Replaces: 4451752) |
|
$ 9.77 | |||||
| 11 | WP3387230 | Screw (Replaces: 3196181) |
|
Immediately | $ 7.69 | ||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 13 | 4448549 | Vent, Control Panel |
|
- | |||||
| 13 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 14 | 4451535 | Side, Control Compt. (right) |
|
- | |||||
| 14 | WP4449809 | Side, Control Compt. (screw) (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 14 | 4451536 | Side, Control Compt. (left) |
|
- | |||||
| 15 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 15 | 4452244 | Back, Control |
|
- | |||||
| 20 | 3191842 | Cover, Rear |
|
- | |||||
| 21 | 4451407 | Plate, Support |
|
- |
