01 - Cooktop
02 - Oven
03 - Control Panel, Literature
04 - Oven Door
05 - Top Venting
06 - Internal Oven, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

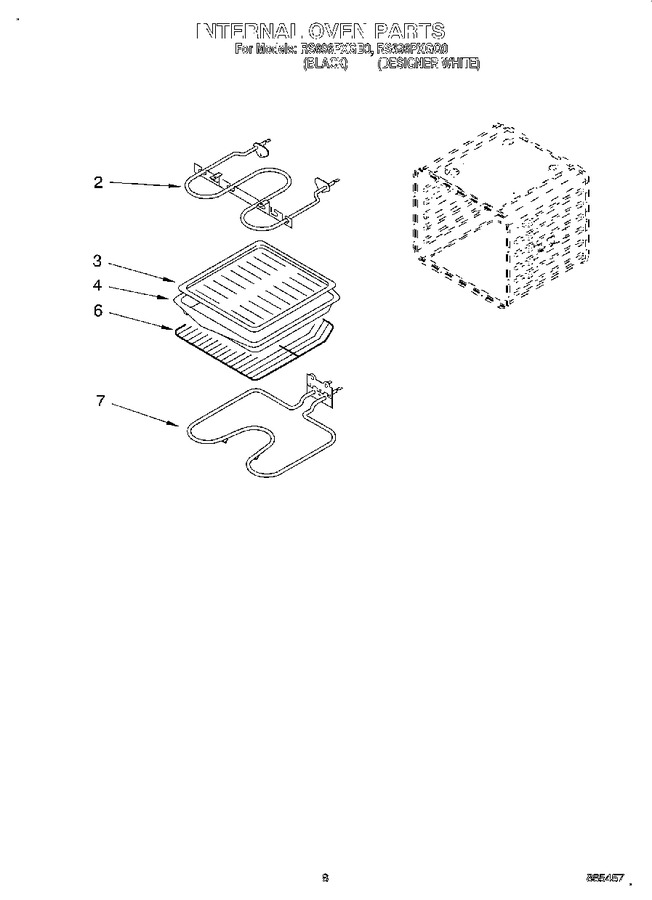

| 2 | WP9760767 | Element, Broil (Replaces: 4452154) |
|
Immediately | $ 147.74 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 6 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 107.65 | ||||
| 7 | WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | |||||
| 7 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 7 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 7 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 7 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 7 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 7 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 7 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 7 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 7 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 7 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 7 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 7 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 7 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 7 | 4454918 | Harness, Wire (main) |
|
- | |||||
| 7 | 3191956 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | 3192168 | Harness, Wire (burners) |
|
- | |||||
| 7 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | 3179589 | Wire, Tie |
|
- | |||||
| 7 | 4451163 | Conduit |
|
- | |||||
| 7 | 4448664 | Clamp |
|
$ 18.35 | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 7 | 4450800 | Screw, Ground |
|
$ 11.55 | |||||
| 7 | 4451761 | Support, Wiring |
|
- | |||||
| 7 | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.11 | |||||
| 7 | 4452222 | Spacer, Harness |
|
- | |||||
| 7 | 814381 | Pin Hinge Kit |
|
$ 7.73 | |||||
| 7 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 7 | WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | |||||
| 7 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 7 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 7 | WPW10207397 | Element, Bake (Replaces: 4452153) |
|
Immediately | $ 69.44 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 7 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 7 | 261900 | Citrine White |
|
$ 51.34 | |||||
| 7 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 7 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- |
