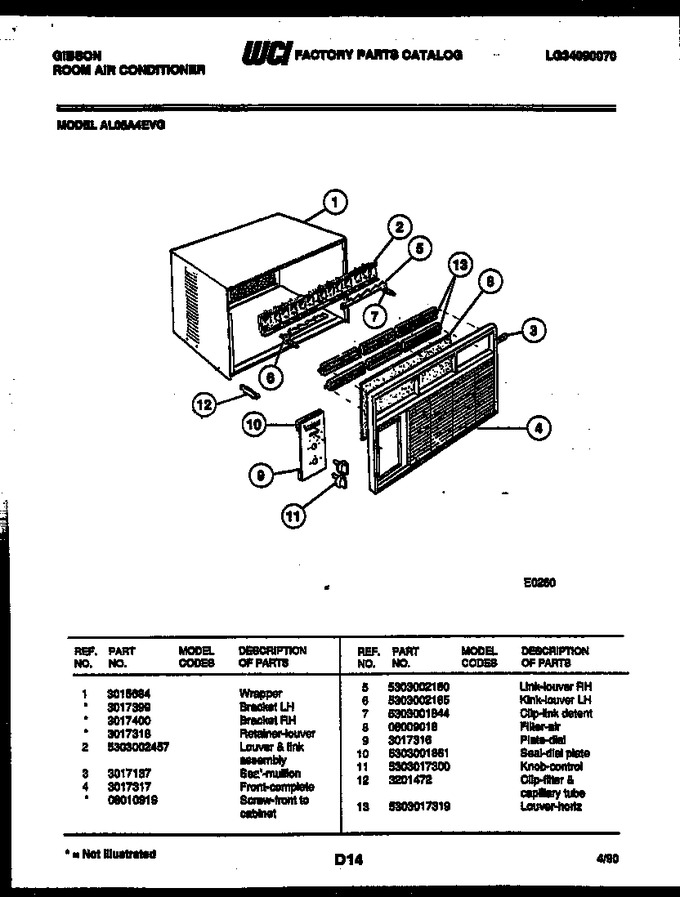

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015684 | Wrapper |
|
- | |||||
| 2 | 5303002457 | Louver & Link Assembly |
|
- | |||||
| 3 | 3017137 | Seal-mullion |
|
- | |||||
| 4 | 3017317 | Front-complete |
|
- | |||||
| 5 | 5303002160 | Link-louver Rh |
|
- | |||||
| 6 | 5303002165 | Kink-louver Lh |
|
- | |||||
| 7 | 5303001844 | Clip-link Detent |
|
- | |||||
| 8 | 08009018 | Filter-air |
|
- | |||||
| 9 | 3017316 | Plate-dial |
|
- | |||||
| 10 | 5303001861 | Seal-dial Plate |
|
- | |||||
| 11 | 5303017300 | Knob-control |
|
- | |||||
| 12 | 3201472 | Clip-filter & Capillary Tube |
|
- | |||||
| 13 | 5303017319 | Louver-horiz |
|
- | |||||
| 1A | 3017399 | Bracket-lh (non-illustrated) |
|
- | |||||
| 1B | 3017400 | Bracket-rh (non-illustrated) |
|
- | |||||
| 1C | 3017318 | Retainer-louver (non-illustrated) |
|
- | |||||
| 4A | 08010919 | Screw-front To Cabinet (non-illustrated) |
|
- |
