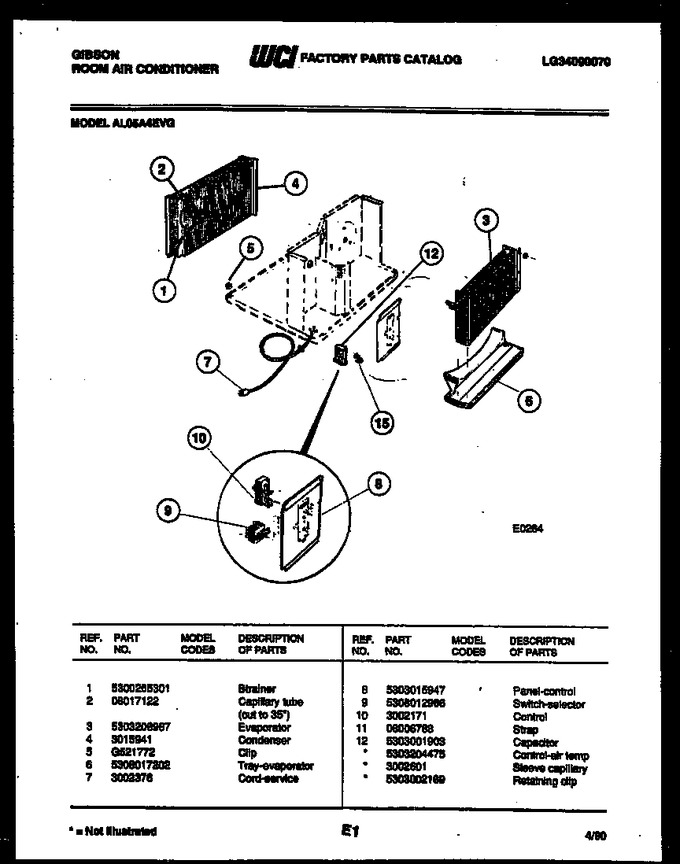

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Strainer |
|
$ 284.30 | |||||
| 2 | 08017122 | Capillary Tube-cut To 35`` |
|
- | |||||
| 3 | 5303206967 | Evaporator |
|
- | |||||
| 4 | 3015941 | Condenser |
|
- | |||||
| 5 | G521772 | Clip |
|
- | |||||
| 6 | 5308017202 | Tray-evaporator |
|
- | |||||
| 7 | 3002376 | Cord-service |
|
- | |||||
| 8 | 5303015947 | Panel-control |
|
- | |||||
| 9 | 5308012966 | Switch-selector |
|
- | |||||
| 10 | 3002171 | Control |
|
- | |||||
| 11 | 08006788 | Strap |
|
- | |||||
| 12 | 5303001903 | Capacitor |
|
- | |||||
| *26981 | 5303002169 | Retaining Clip |
|
- | |||||
| *26981 | 3002601 | Sleeve-capillary |
|
- | |||||
| *26981 | 5303204475 | Control Air Temp |
|
- |
