02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

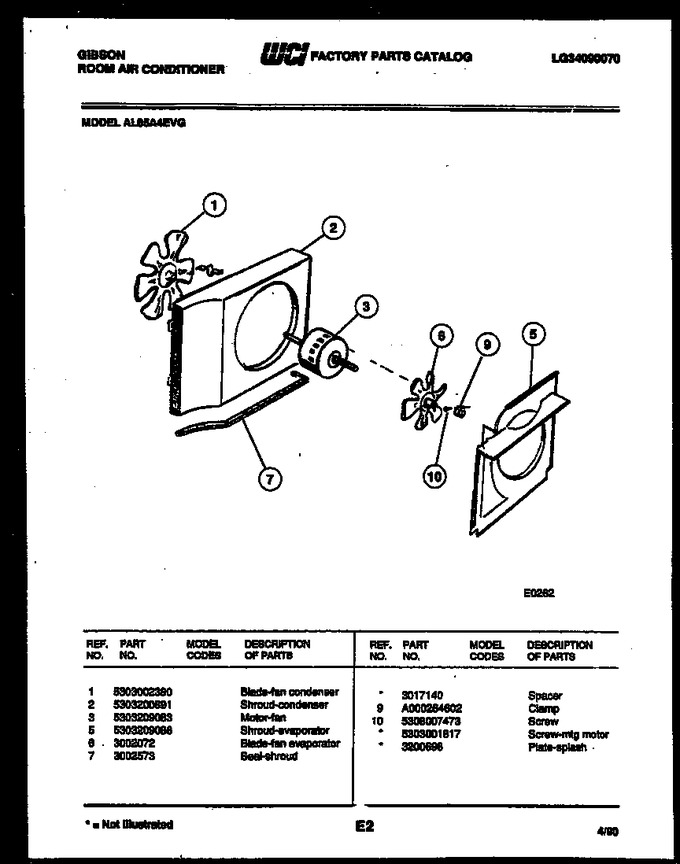

| 1 | 5303002390 | Blade-fan Condenser |
|
- | |||||
| 2 | 5303200891 | Shroud-condenser |
|
- | |||||
| 3 | 5303209083 | Motor-fan |
|
- | |||||
| 5 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 6 | 3002072 | Blade-fan Evaporator |
|
- | |||||
| 7 | 3002573 | Seal-shroud |
|
- | |||||
| 9 | A000264602 | Clamp |
|
- | |||||
| 10 | 5308007473 | Screw |
|
- | |||||
| *26982 | 3200698 | Plate-splash |
|
- | |||||
| *26982 | 5303001817 | Screw-mtg Motor |
|
- | |||||
| 7A | 3017140 | Spacer (non-illustrated) |
|
- |
