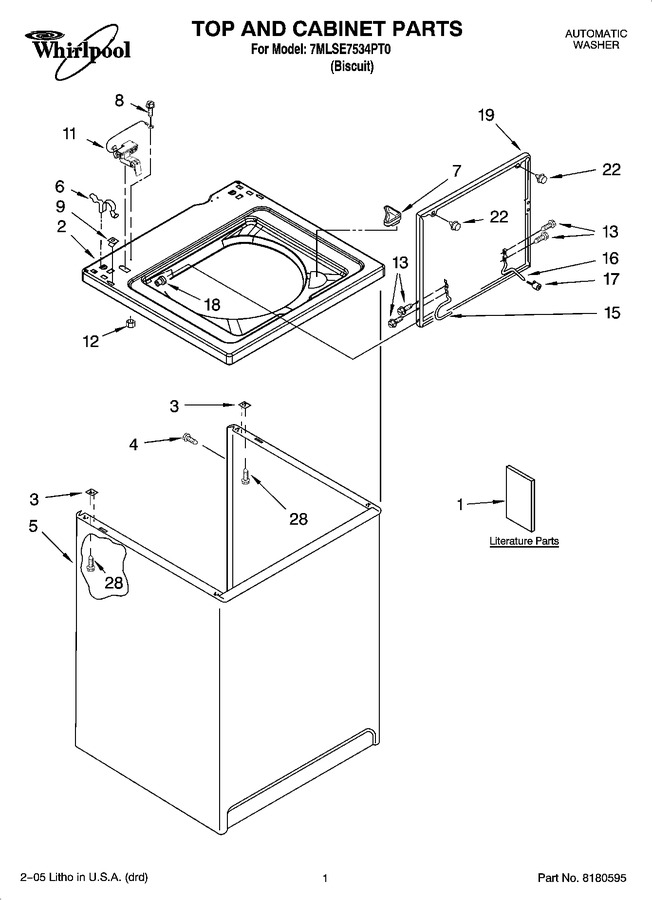

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Machine Base Parts


05 - Brake, Clutch, Gearcase, Motor And Pump Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8539803		Installation Instructions		Appelez-nous	-
1	8543288		Wiring Diagram		Appelez-nous	-
1	8539806		Use & Care Guide		Appelez-nous	-
1	8558582		Energy Guide (mexico)		Appelez-nous	-
1	8558590		Feature Sheet		Appelez-nous	-
2	8318066		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
5	3954357		Cabinet				$ 268.04
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
7	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 10.88
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.26
9	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 35.84
12	W10080180		Nut, Hex   (Replaces: 8533959)				$ 12.13
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
15	8318088		Hinge, Lid (l.h.)		Appelez-nous	-
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 26.60
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	8557514		Lid		Appelez-nous	-
22	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.14
28	WP3390631		Screw, 10-16 X 1/2 (4)   (Replaces: 3390631)				$ 7.04
