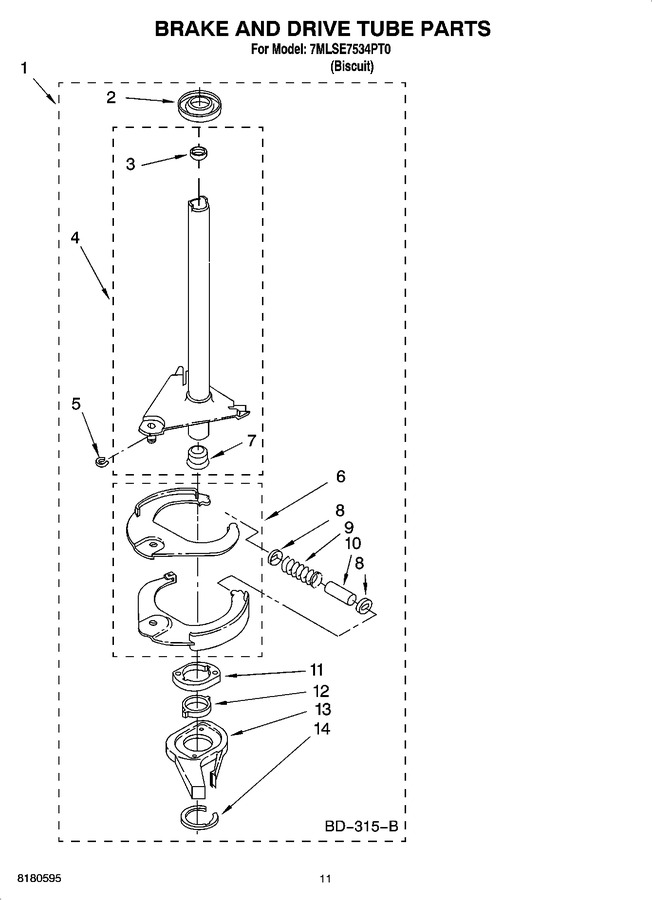

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake And Drive Tube (complete) (Replaces: 388952) |
|
Immediately | $ 195.58 | ||||
| 2 | WP62658 | Ring, Thrust (Replaces: 62658) |
|
Immediately | $ 11.17 | ||||
| 3 | WP356427 | Seal, Drive Tube (Replaces: 356427) |
|
Immediately | $ 6.47 | ||||
| 4 | WP64208 | Tube, Basket Drive (includes Illus. 3, 4, 5, & 9) (Replaces: 64027) |
|
$ 272.29 | |||||
| 5 | W10083190 | Ring, Retaining (Replaces: 64035) |
|
$ 10.03 | |||||
| 6 | 285438 | Shoe, Brake (2) (Replaces: 64232) |
|
$ 123.64 | |||||
| 7 | 62703 | ``t`` Bearing, Spin Tube |
|
Immediately | $ 277.74 | ||||
| 8 | 285658 | Cap, Brake Spring (2) (Replaces: 3353956) |
|
$ 9.61 | |||||
| 9 | 387806 | Spring, Brake |
|
- | |||||
| 10 | 285658 | Sleeve, Brake Spring (Replaces: 3355360) |
|
$ 9.61 | |||||
| 11 | WP8546461 | Cam, Brake Release (Replaces: 661516) |
|
$ 7.48 | |||||
| 12 | WP63022 | Sleeve, Cam (Replaces: 63022) |
|
$ 41.30 | |||||
| 13 | 285790 | Driver, Brake Cam (Replaces: 64194) |
|
Immediately | $ 38.92 | ||||
| 14 | W11033823 | Ring, Retaining (Replaces: 90368) |
|
$ 11.21 | |||||
| 14 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 14 | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller & Pin |
|
$ 41.86 |
