Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3360629 Gearcase (complete)   (Replaces: 8532118) In-Stock Immediately $ 422.22

2 285202 Cover, Gearcase Appelez-nous -
3 WP3349985 Seal, Gearcase Cover   (Replaces: 3349985) In-Stock Immediately $ 23.59

4 WP285195 Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195) Special Order $ 93.95

5 3360629 Pinion, Spin (includes Item 25)   (Replaces: 63320) In-Stock Immediately $ 422.22

6 WP356427 Seal, Spin Pinion   (Replaces: 356427) In-Stock Immediately $ 6.47

7 WP389387 Shaft, Agitator (complete)   (Replaces: 389387) Special Order $ 242.73

8 90369 Ring, Retaining (2) Special Order $ 5.04

9 62677 Retainer, Spring (2) Special Order $ 6.25

10 62676 Spring, Agitate Special Order $ 56.99

11 WP389387 Gear, Agitate (includes 15 & 29)   (Replaces: 63273) Special Order $ 242.73

12 62619 Washer, Agitate Gear Special Order $ 12.11

13 WP389387 Cam Follower (includes 14)   (Replaces: 62580) Special Order $ 242.73

14 WP389387 Cam, Agitate (includes 13)   (Replaces: 62581) Special Order $ 242.73

15 WP389387 Shaft, Agitator (includes 11 & 29)   (Replaces: 285509) Special Order $ 242.73

16 62618 Washer, Cam Thrust Appelez-nous -
17 285205 Bearing, Thrust (includes 18)   (Replaces: 16018) Special Order $ 6.77

18 285205 Ball, Bearing (includes 17)   (Replaces: 85529) Special Order $ 6.77

19 389230 Bottom And Pinion, Gearcase Appelez-nous -
20 3949116 Block Tab,terminal Appelez-nous -
21 285352 Seal, Thrust Plug In-Stock Immediately $ 38.03

22 WP3351614 Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614) In-Stock Immediately $ 6.26

23 3362552 Ring, Retaining Appelez-nous -
24 285735 Washer Kit, Thrust Appelez-nous -
25 3360629 Gear, Spin   (Replaces: 62570) In-Stock Immediately $ 422.22

26 388253A Neutral Assembly   (Replaces: 388253) In-Stock Immediately $ 52.86

27 3360629 Rack, Connecting   (Replaces: 3349296) In-Stock Immediately $ 422.22

28 3360629 Actuator, Shift   (Replaces: 62621) In-Stock Immediately $ 422.22

29 WP388815 Washer, Intermediate   (Replaces: 388815) Special Order $ 7.02


    View Diagram in Separate Window     Print Icon   Print Part List

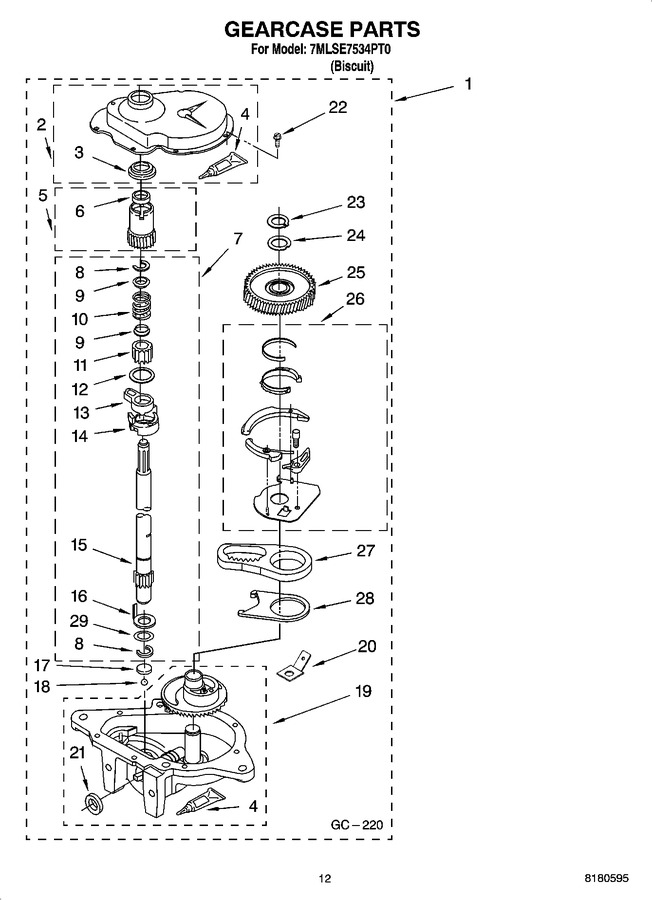

Diagram for 7MLSE7534PT0
