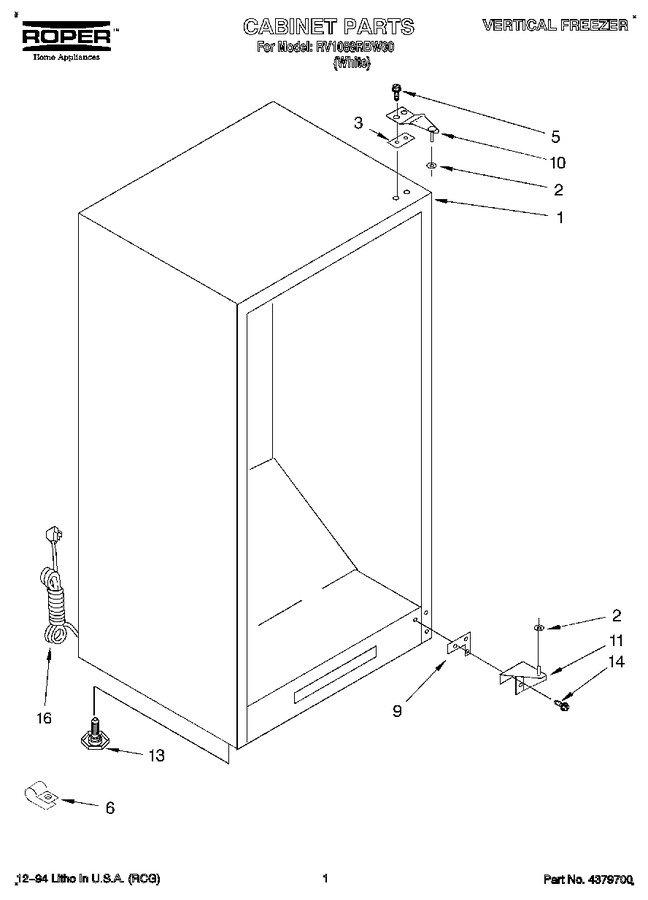

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 9.51 | |||||
| 3 | 4390489 | Shim |
|
$ 6.26 | |||||
| 5 | 4390487 | Screw |
|
- | |||||
| 6 | 4356403 | Clamp |
|
- | |||||
| 9 | 4390497 | Shim, Bottom |
|
- | |||||
| 10 | 4357066 | Top, Hinge |
|
- | |||||
| 11 | 4357065 | Bottom Hinge |
|
- | |||||
| 13 | W11117769 | Leg, Leveller (Replaces: 4390498) |
|
Immediately | $ 16.61 | ||||
| 14 | WP999367 | Screw (Replaces: 4390496) |
|
$ 7.07 | |||||
| 16 | 4357080 | Power Cord |
|
- |
